Gravity - DAC 2-channel 4-20mA I2C digital-to-analog converter - DFRobot DFR0972
Brand: Dfrobot
Product Code: AN-22277
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
Product Code: AN-22277
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
Ex Tax: 14.88€

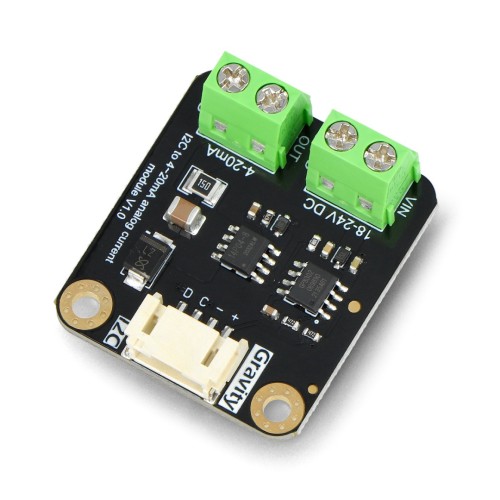

Digital-to-analog converter equipped with a Gravity series connector. It has two channels - one with a current output in the range of 0 mA to 25 mA, and the other for connecting the power supply in the range of 18 V to 24 V DC. The DAC is compatible with Arduino, so it can be used with a wide range of peripherals such as light controllers, inverters, valves and pumps. The maximum resistance for an 18 V supply is 450 Ohm and for 24 V up to 750 Ohm.
Main features:
- Equipped with GP8403 chip
- It has a stable output current with a slight error of up to 0.2% after calibration
- Wide supply voltage range from 18 V to 24 V DC
- It has a Gravity connector and uses the I2C bus for communication
- Current consumption is less than 5 mA
Specification:
- Converter type: digital-to-analog DAC
- Supply voltage range: 18 V to 24 V DC (24 V recommended)
- Communication interface: I2C bus
- I2C address: 0x58
- Built-in chip: GP8403
- Input signal: 12 bits from 0x000 to 0xFFF (0-25 mA)
- I2C input signal level: 2.7 V to 5 V
- Accuracy: 0.5% before calibration; 0.2% after calibration
- Current consumption: < 5 mA
- Startup time: < 2 ms
- Operating temperature range: -40 °C to 125 °C
- Load resistance: maximum resistance 450 Ω for 18 V supply, maximum 750 Ω for 24 V
- Output current: 0 mA to 25 mA
- Connector Standard: Gravity PH2.0-4P+
- Module dimensions: 35 x 32 x 13.9 mm

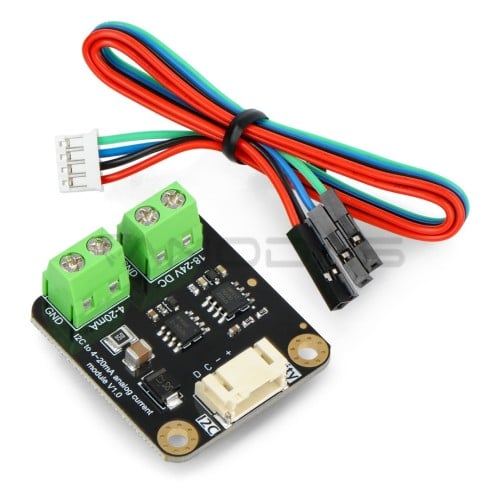

Set includes:
- Gravity - DAC 2-channel 4-20mA I2C
- Cable with Gravity connector
