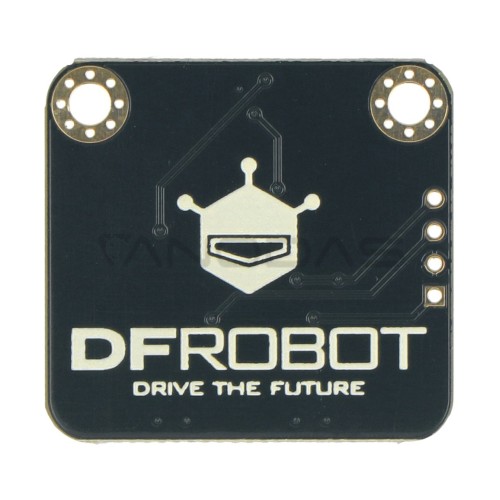

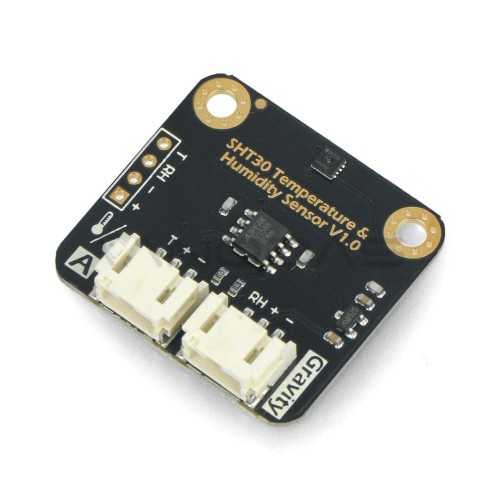

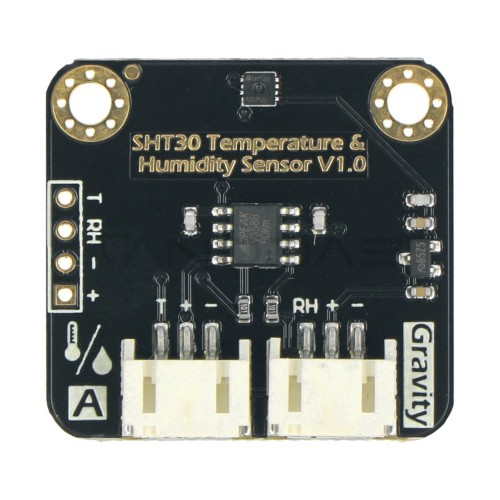

Gravity, Analog temperature and humidity sensor, SHT30, DFRobot DFR0588

Brand: Dfrobot
Product Code: AN-19383
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-11
12.30€
Ex Tax: 10.17€

Qty

Analog temperature and humidity sensor produced by DFRobot. The module is equipped with a high-quality new generation SHT30 chip from Sensirion. It uses CMOSens technology, guarantees reliability and long-term stability of measurements with low power consumption. Compatible with controllers operating at 3.3 V / 5 V, which include Arduino, ESP32 and micro:bit. The SHT30 enables temperature measurement in the range of -40 °C to 125 °C and humidity measurement in the range of 0% to 100% RH.

Main features:
  • Internal self-calibration, linear analog voltage output
  • High precision measurement, low power consumption, fast response time
  • Sensor compatible with controllers operating at 3.3 V / 5 V
  • Suitable for applications such as urban environment monitoring, smart home and building projects, and general industrial automation
Specification:
  • Type: analog temperature and humidity sensor
  • Embedded chip: Sensirion SHT30
  • Input voltage range: 3.3 V to 5.5 V
  • Connector: Gravity / solder fields
  • Resting current: < 0.5 mA
  • Temperature:
    • measuring range: -40 °C to 125 °C
    • measurement resolution: 0.01 °C, 14 bits
    • accuracy of measurement: ± 0.2 °C from 10 °C to 55 °C / ± 1.5 °C from -40 °C to 125 °C
    • response time > 2s
  • Humidity
    • measuring range: from 0% to 100% RH
    • measurement resolution: 0.006%, 14 bits
    • measurement accuracy: ± 3% RH from 10% to 90% RH / ± 8% RH from 0% to 100% RH
    • response time: > 8s
  • Module dimensions: 30 x 32 mm
  • Weight: 4 g

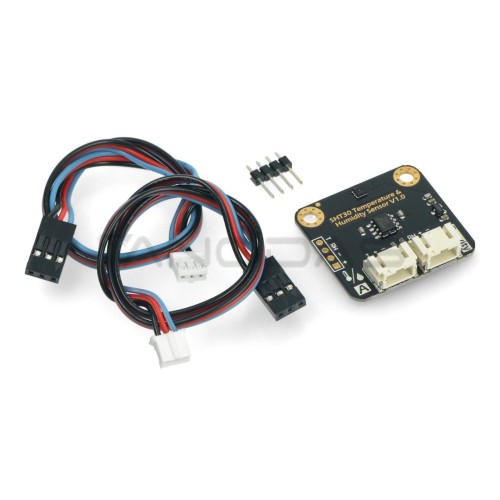

Set includes:
  • Gravity - analog sensor of temperature and humidity
  • Gravity connection cable - x2
  • Goldpin strip 1x4
