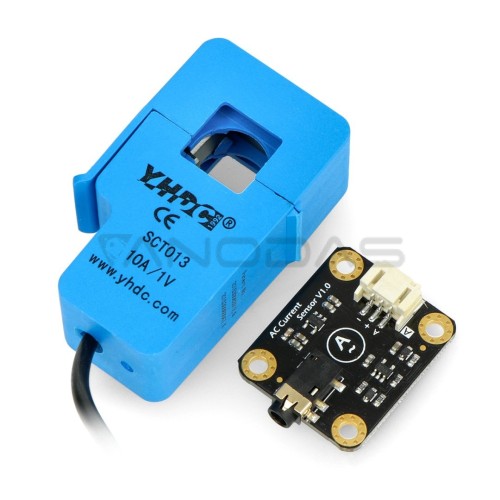

Gravity, analog AC current sensor, up to 10A, DFRobot SEN0288

• Non-contact measurement for high safety during operation
• Multiple ranges to choose from for different measurement scenarios
• Compatible with microcontroller operating at 3.3 V / 5 V
• Used for automatic AC motor monitoring
• Used when measuring lighting and electrical equipment
• As a core component of projects to measure and display AC current in household appliances

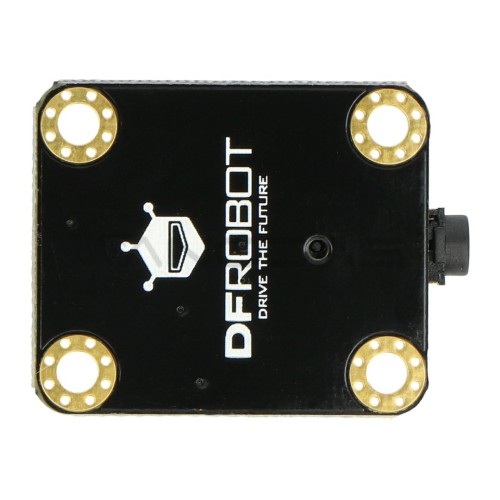

• AC Signal Conversion Module:
• Type: AC current sensor
• Type: analog
• Input voltage range (VCC): 3.3 V to 5.5 V
• Connector interface: Gravity PH2.0-3P
• AC input voltage range: 0 V to 1 V AC RMS
• Relative error: +/- 4%
• Module dimensions: 32 x 27 mm
• Module weight: 5 g

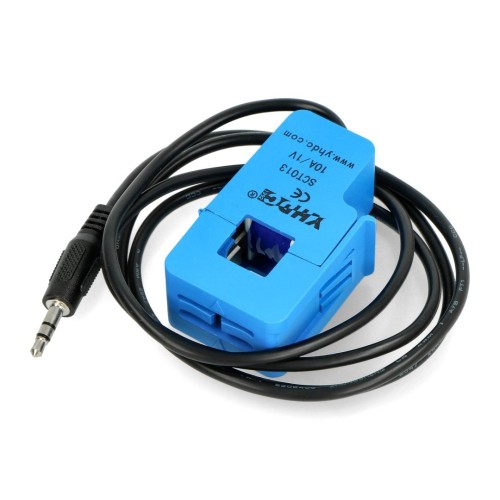

• NO type of AC transformer probe:
• AC current range: 0 to 10 A
• Signal output: voltage from 0 V to 1 V AC (linear from 0 A to 10 A)
• Accuracy: +/- 1%
• Non-linearity: ≤ +/- 0.2%
• Frequency range: from 50 Hz to 1kHz
• Operating temperature range: from -25 °C to 70 °C
• Cable length: 1 m
• Probe bore size: 13 x 13 mm
• Probe weight: 50 g

• AC signal conversion module
• Open type AC transformer probe (10 A)
• Cable for sensor 1 m long - analog - Gravity
