Gravity - 360-degree rotary encoder module - DFRobot SEN0502
Brand: Dfrobot
Product Code: AN-21480
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-11
Product Code: AN-21480
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-11
Ex Tax: 13.22€

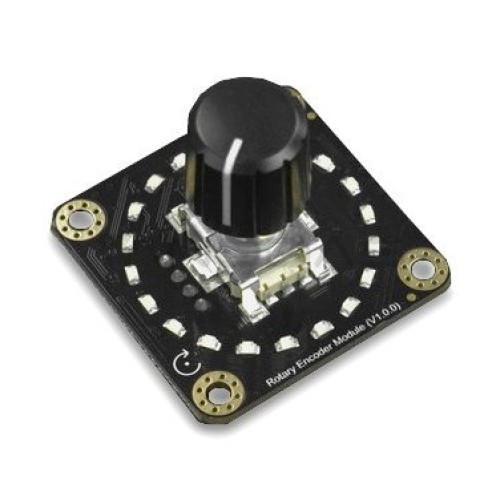

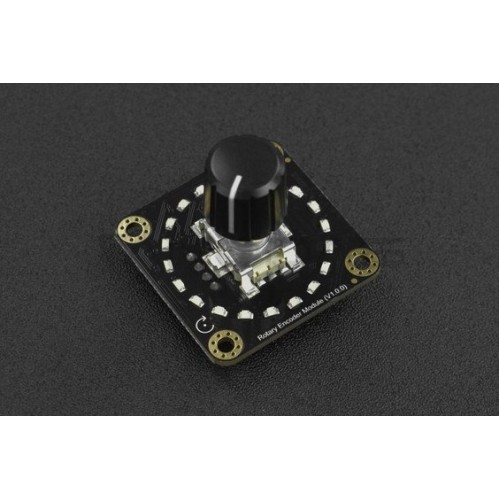

Another product from the Gravity series from DFRobot is in the form of a module with a 360° rotary encoder. The encoder has a resolution of 20 pulses per revolution, each pulse corresponds to one stroke. The board also has LEDs assigned to each encoder stroke, they allow you to visualize the encoder status in real-time. Modules can be cascaded together. For communication, they use the I2C interface with configurable accuracy from 1 to 51 for each encoder stroke.
Main features:
Main features:
- Cascade connection possible
- I2C data output
- Built-in LED indicator
- Support for 4 different I2C addresses
- Working voltage: 3.3 V to 5 V
- Total rotation angle: 360°
- Pulses per revolution: 20
- Interface: two Gravity I2C connectors
- Maximum number of cascaded devices: 4
- Service life: 30,000 ± 200 cycles
- Contact resistance: less than 100 mΩ
- Insulation impedance: above 100 MΩ
- Oscillation: Less than 10ms
- Working temperature: -30 °C to 80 °C
- Accuracy: 1 to 51
- Minimum value set: 1 (lights up 1 LED at 2.5 turns)
- Maximum value set: 51 (lights up with one LED for 1 turn)
- Memory: 0 to 1023
- Dimensions: 37 x 37 mm
- 1x Gravity - 360-degree rotary encoder - DFRobot SEN0502
- 1x Gravity I2C/UART cable
