Gravity, 2x2A Motor Shield, two-channel motor controller 35V/2A, a frontend for Arduino, DFRobot DRI0017

Brand: Dfrobot
Product Code: AN-19896
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
24.30€
Ex Tax: 20.08€

Qty

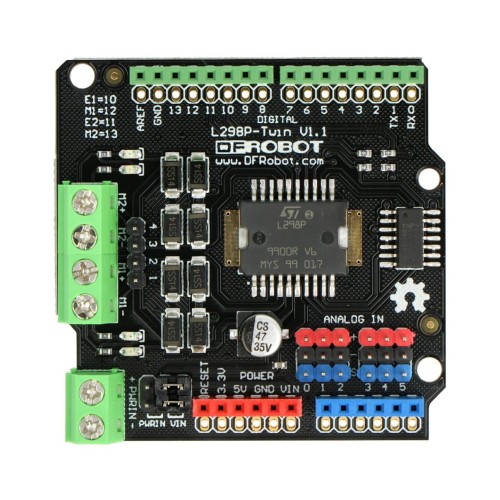

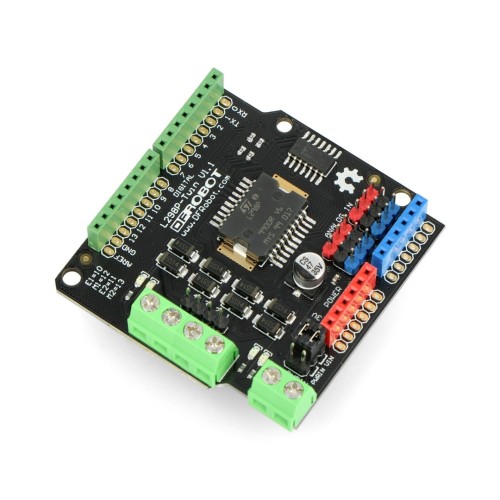

Overlay for Arduino produced by DFRobot which allows controlling two 35 V / 2 A DC motors. Equipped with L298P chip that allows controlling direction and speed of connected motors. The overlay provides an output current of up to 2 A per channel. It uses only four Arduino leads and can be powered from both the baseboard and an external source, but the manufacturer strongly recommends using an external power supply.

Specification:
  • Motor supply voltage: from 4.8 V to 35 V
    • Power supply from Arduino: from 7 V to 12 V
    • External power supply: from 4.8 V to 35 V
  • Maximum output current: up to 2 A per channel
  • Total power dissipation: 25 W (T = 75 °C)
  • Control: H-bridge L298P
  • Number of motors supported (channels): 2
  • Operating voltage: 5 V
  • Power source: external power supply or VIN pin from Arduino
  • Output port: 2 channel screw terminals or male pin connectors
  • Control port: 4 TTL compatible digital signals (digital 10-13)
  • Speed control possible via PWM signal
  • Operating temperature range: from -25 °C to 130 °C
  • Module dimensions: 56 x 57 mm
  • Weight: 35 g
