Gravity - 1kg (10N) digital pressure sensor - HX711 - Build a scale kit - DFRobot KIT0176

Brand: Dfrobot
Product Code: AN-20415
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-11
37.50€
Ex Tax: 30.99€

Qty

A set of elements for self-assembly, which allow for making an electronic balance. The kit contains a digital pressure sensor, in the form of a strain gauge bar, detecting pressure from 1 g to 1 kg (with a force of 10 N). In addition, the manufacturer has also included a signal converter with a built-in HX711 chip. When assembled, the scale has dimensions of 120 x 100 x 30 mm.

Main features:
  • Complete accessories for a convenient and fast scale build
  • Built-in calibration algorithm - calibrate at the touch of a button or via API, see the user guide for more details
  • Compatible with Arduino series, micro:bit, ESP32, Raspberry Pi and other controllers working with 3.3 V and 5 V
  • Can be used as a simple electronic scale or as an everyday kitchen scale
Specification:
  • Type: pressure sensor
  • Type: digital
  • Measuring range: from 1 g to 1000 g
  • Supply voltage: 3.3 V / 5 V
  • Current consumption: < 20 mA

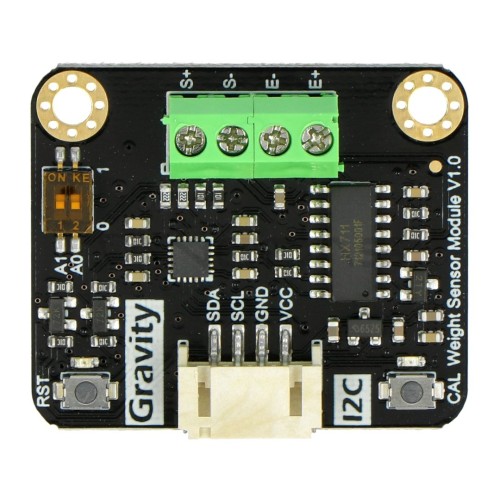

  • Built-in AD conversion circuit: HX711
  • Synthesis deviation: ± 0,2% g
  • Communication interface: I2C bus
  • Interface address: 0x64 / 0x65 / 0x66 / 0x67
  • Built-in one-touch calibration algorithm
  • Compatible with Arduino, micro:bit, ESP32, Raspberry Pi

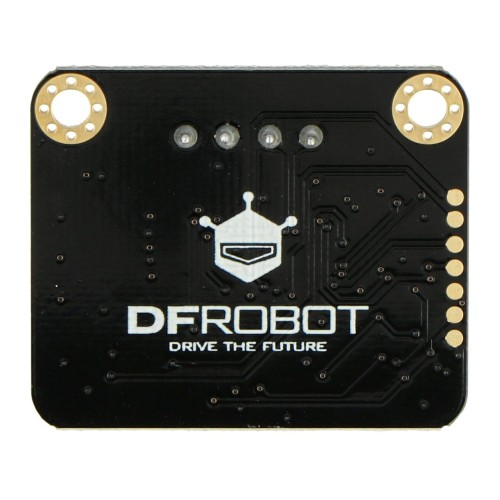

  • Board dimensions: 37 x 31 mm

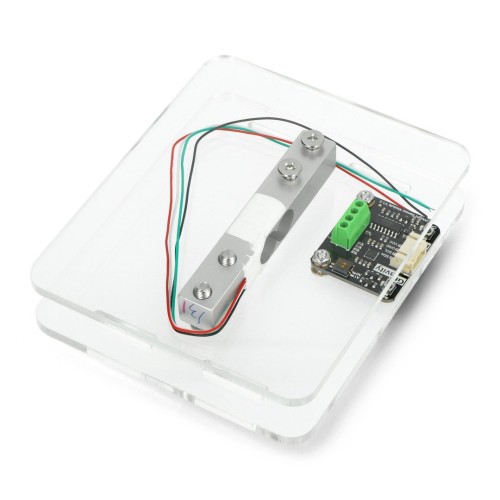

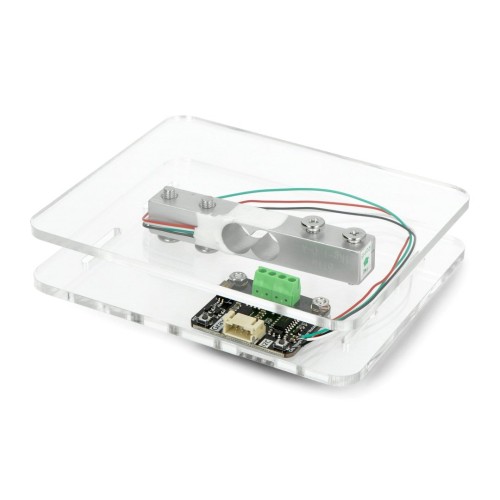

  • Total dimensions of the scale after assembling the kit: 120 x 100 x 30 mm

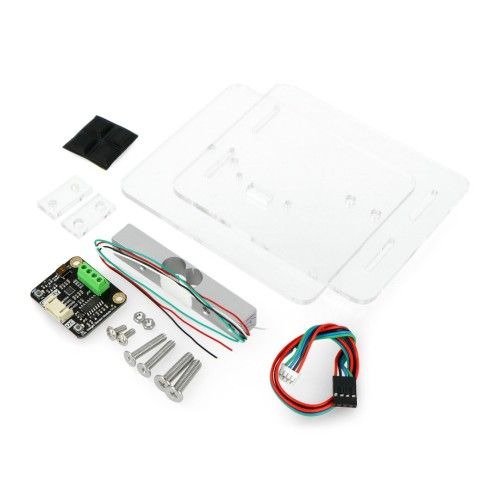

Set includes:

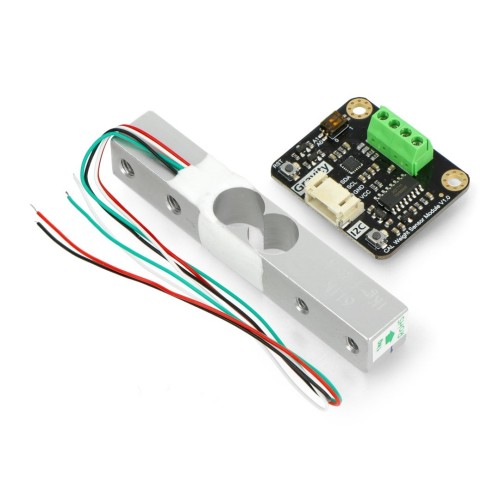

  • Pressure sensor - strain gauge bar 1 kg (10 N)
  • Analog to digital converter
  • 4-pin cable with Gravity connector
  • Acrylic caps to build the scale
  • Mounting screws
    • M4x20 cm - 2 pcs
    • M5x20 cm - 2 pcs
    • M3x8 cm - 2 pcs
  • Non-slip feet - 4 pcs
