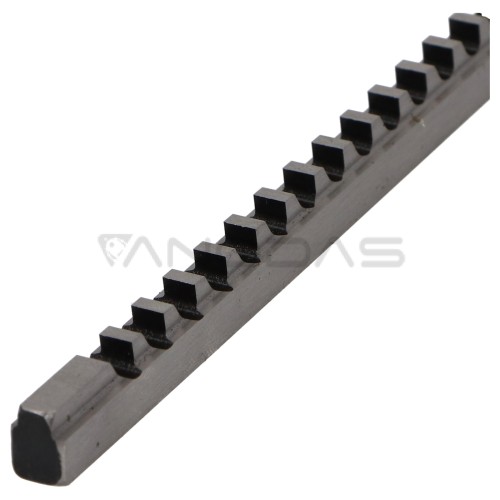

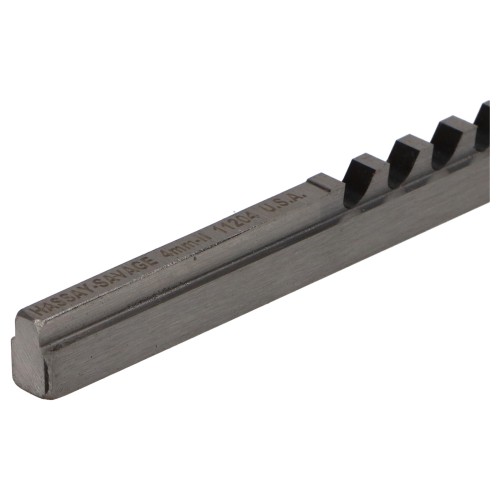

GR4 II wedge groove plunger

Brand: QC - Quality Control
Product Code: MX-2904056C111
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
245.50€
Ex Tax: 202.89€

Qty

Execution: HSS, ground. The sleeves marked I, II and III have stop collars.

Purpose: For making machine elements, templates, welding, drilling and fastening devices, the rake angle is selected for steel, but it is also selected for cast iron, bronze and aluminum.
For the quick and economical production of precisely centered and dimensionally accurate keyways according to DIN 6885 for JS9 fitting. The allowance required to be removed is cut in several passes of the tool. The shape of the teeth and grinding ensure a clean surface. For use on manual and hydraulic presses.

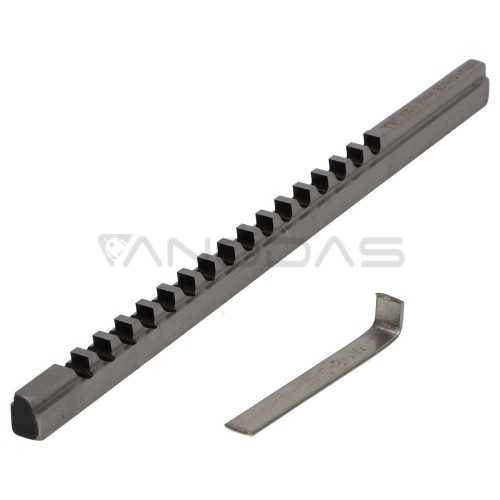

The strips are delivered with a broach.



Execution: HSS, 4–5 mm.


keyway width: 4 ll mm
JS9 tolerance:+0+0.015mm
for wedge sizes: 4 x 4 mm
spine width x length: 6.35 x 178 mm
transitions:2
inserts: 1pcs
pushing length: 8–43 mm
pushing force: 5.2 kN
