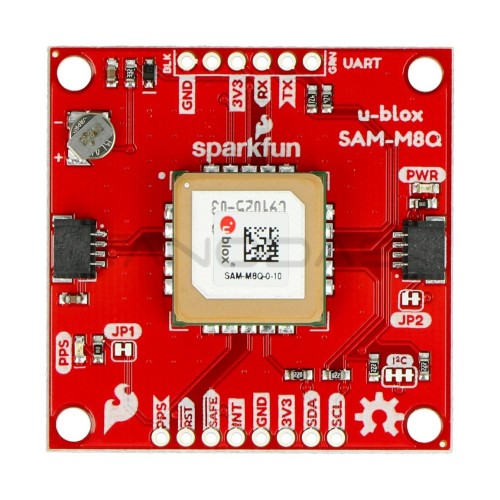

GPS SAM-M8Q module, Qwiic, antenna PCB, SparkFun GPS-15210

Brand: Sparkfun
Product Code: AN-14403
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
59.70€
Ex Tax: 49.34€

Qty

SAM-M8Q is a highly accurate, miniature board with a 72-channel GNSS receiver that can receive signals from GPS, GLONASS, BeiDou, and Galileo. It communicates using SPI / I2C or UART. It has a Qwiic connector. On board is a rechargeable RTC battery which reduces time-to-first-fix. The U-blox module can be configured through a program called U-center. It has the possibility of setting various functions, such as baud rate, geofencing, update rates, spoofing detection, external interrupts, SBAS / D-GPS, etc. The supply voltage is 3.3 V.

Specification:

  • The number of channels of the GPS receiver: 72
  • Horizontal accuracy: 2.5 m
  • Maximum update frequency: 18 Hz
  • TTFF (Time-To-First-Fix)
    • Cold: 26 sec
    • Hot: 1 sec
  • Maximum altitude: 50,000 m
  • Max. G: ≤4
  • Maximum speed: 500 km/h
  • Speed accuracy: 0.05 m/sec
  • Course precision: 0.3 degrees
  • The accuracy of time pulse: 30 ns
  • Power Supply: 3.3 V
  • Current consumption: ~29 mA (tracking GPS + GLONASS)
  • Customizable software:
    • Geofencing
    • Odometer
    • External Interrupt
    • Low power consumption mode
  • Support for NMEA, UBX, and RTCM protocols via UART or I2C
