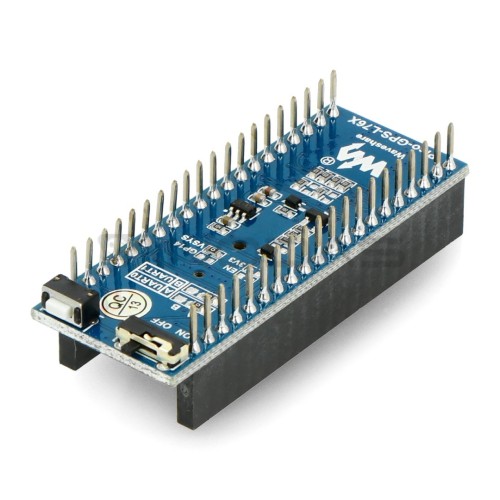

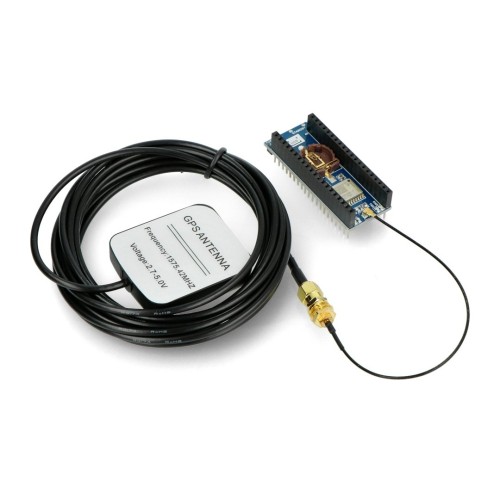

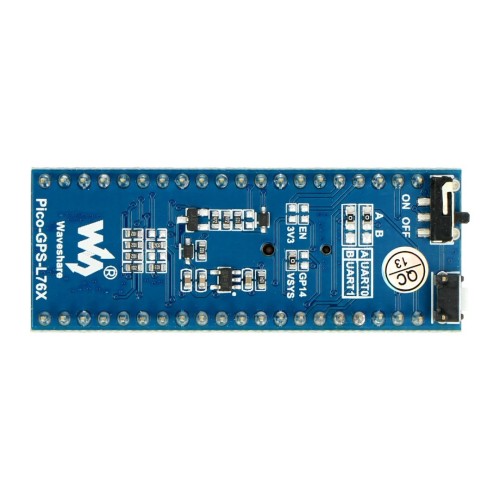

GNSS/GPS/BDS/QZSS L76B module for Raspberry Pi Pico - Waveshare 20072

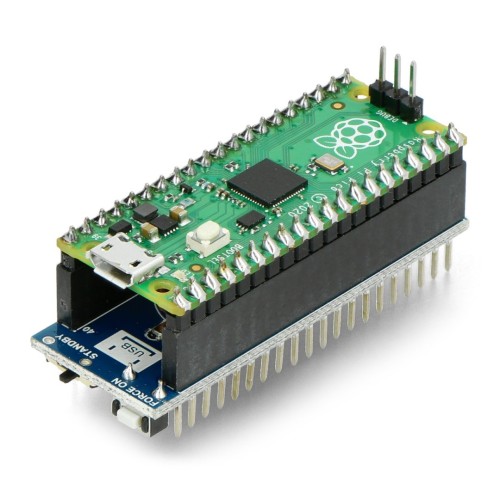

• Standard Raspberry Pi Pico pinouts
• Supports multiple systems: GPS, BDS, QZSS
• Self-track prediction technology helps in fast positioning
• AlwaysLocate, an intelligent periodic mode controller for power saving
• Supports D-GPS, SBAS (WAAS / EGNOS / MSAS / GAGAN)
• UART communication speed: from 4800 bps to 115200 bps (default 9600 bps)

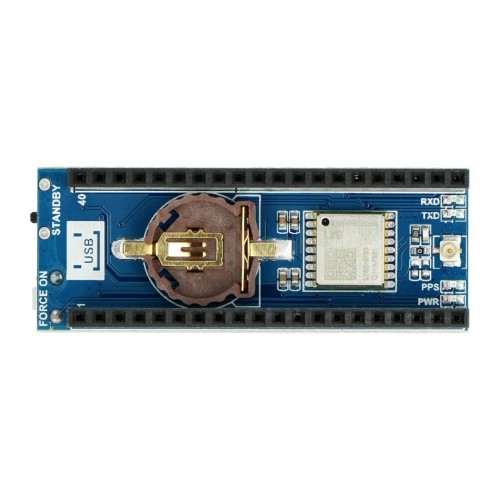

• The built-in battery slot supports ML1220 batteries for ephemeris information storage and hot start
• 4 LEDs indicating the module operation status

• Frequency band: GPS L1 (1575.42 MHz); BD2 B1 (1561.098 MHz):
• Channels: 33 tracking channels, 99 acquisition channels, 210 PRN channels
• D/A Code
• SBAS: WAAS, EGNOS, MSAS, GAGAN
• Horizontal position accuracy (autopositioning): up to 2.5 m CEP
• Time-To-First-Fix at -130 dBm:
• Cold starts: up to 15s
• Wars starts: up to 5s
• Hot starts: up to 1s
• Sensitivity:
• Acquisition: -148 dBm
• Tracking: -163 dBm
• Re-acquisition: -160 dBm
• Dynamic Performance:
• Altitude (max.): 1800 m
• Speed (max.): 515 m/s
• Acceleration (max.): 4 g
• Other:
• Communication interface: UART
• Transmission speed: 4800 bps to 115200 bps (default 9600 bps)
• Update rate: 1 Hz (default), 10 Hz (maximum)
• Protocols: NMEA 0183, PMTK
• Power Supply Voltage: 5 V
• Current consumption: 13 mA
• Total current consumption: Up to 40 mA at 5 V (Continuous mode)
• Operating temperature: -40 °C to 85 °C
• Dimensions: 52 x 21 mm
