Gert VGA 666 KIT, VGA module for Raspberry Pi 3/2/B+

Brand: Pi Supply
Product Code: AN-09590
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
8.83€ 11.60€
Ex Tax: 7.30€

Qty

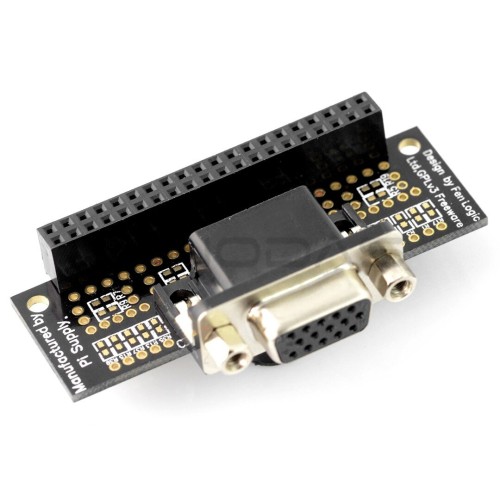

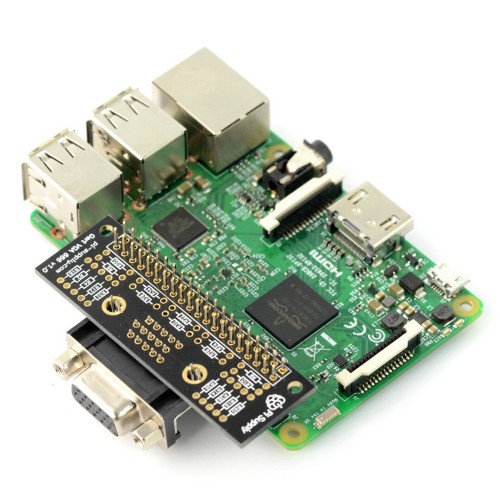

The module for self-assembly allowing the expansion of Raspberry Pi with an additional VGA connector which is able to display an image at 1080p. You can connect two monitors simultaneously to HDMI and VGA. Board is mounted directly on Raspberry Pi GPIO connectors. It is compatible with Raspberry Pi 3 / 2 / B+.

Specification:

  • Resolution: 1080p60 max
  • The possibility to connect two monitors (to HDMI and VGA at the same time)
  • Compatible with Raspberry Pi 3 / 2 / B+
  • Low processor's load

Set includes:

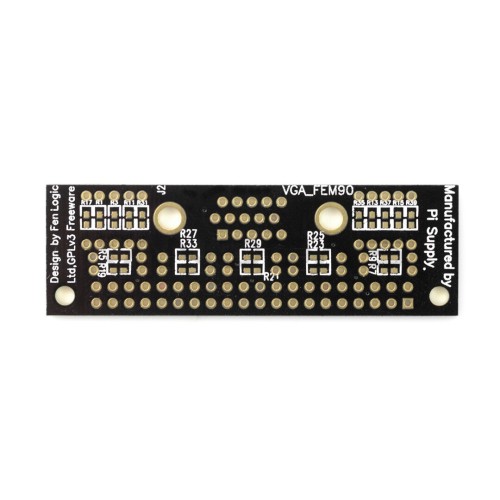

  • 1x Gert VGA 666 PCB
  • 1x 40 pin goldpin strip
  • 1x 15 pin, female VGA connector
  • 20x resistors (2 x 120 Ohm, 3 x 499 Ohm, 3 x 1k Ohm, 3 x 2k Ohm, 3 x 4k Ohm, 3 x 8k Ohm, 3 x 16k Ohm)
