GDZ65 electrospindle 1.2kW 400Hz ER11 24000rpm

Brand: Wagney
Product Code: MX-IW-GDZ62-1-2-400HZ
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-26
380.40€
Ex Tax: 314.38€

Qty

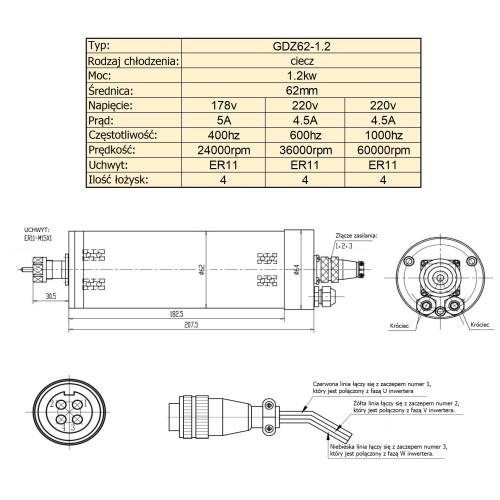

Liquid-cooled electrospindles GDZ62 1.2kW 400Hz are economical electrospindles for engraving and processing materials such as wood, aluminum, bronze, other non-ferrous metals, plastics. They are also used in steel engraving, with small diameter tools. Spindles are factory balanced and adjusted to continuous operation. The allowable speed range of these electrospindles is from 3,000 rpm to 60,000 rpm, depending on the rated frequency.

The spindles are cooled by forced circulation of the cooling liquid. The spindles have built-in connectors adapted to the 8/6mm hose. They should be equipped with a liquid pump with a capacity of at least 300 l/h. The cooling agent may be demineralized water. NOTE: do not use the electrospindle without forced circulation of coolant. It is not possible to work "dry".

GDZ electrospindles with rated frequencies of 400 Hz must work with frequency converters (pop. Inverter). The inverter for an electrospindle should be selected based on the spindle supply voltage, as they do not have the option of star/delta switching. For spindles powered by 3x220V, single-phase inverters are used, and for spindles 3x400V, three-phase inverters are used.


Handle: ER11
Supply voltage: 220V
Motor power: 1.2 kW
Size: GDZ65
Max. revolutions [rpm]: 24000
Frequency: 400 Hz
Bearing type: Angular contact
Cooling: Liquid
ATC: No
