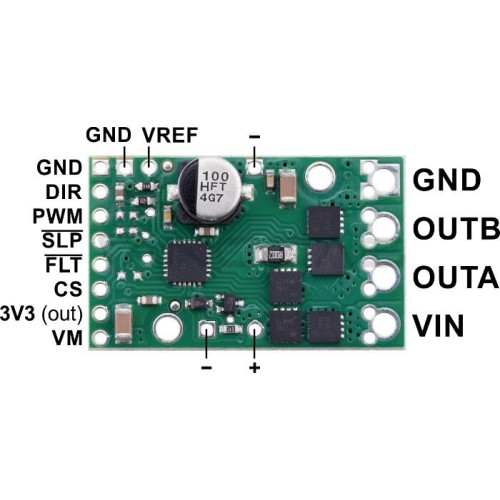

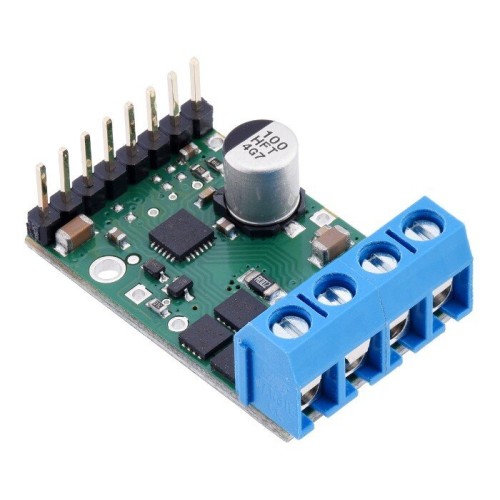

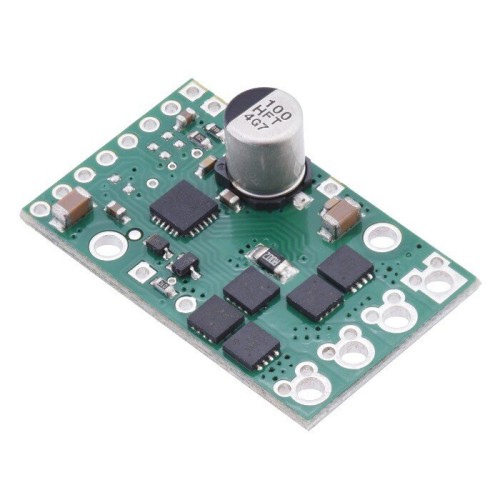

G2 High Power 18v17, single-channel motor controller 30V/13A, Pololu 2991

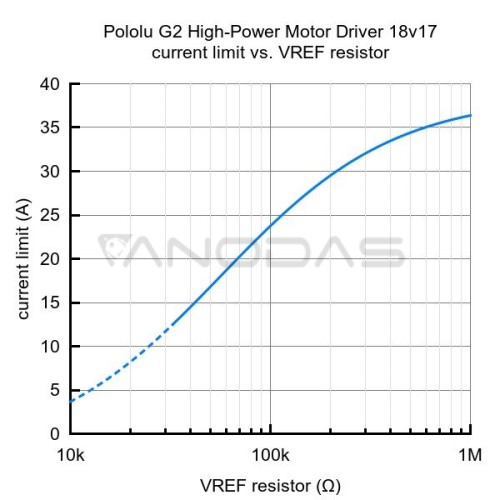

The module allows controlling one DC motor. The motor can be supplied with voltages from 6.5 to 30 V with continuous current consumption of up to 17 A, temporary (for 10 ms) up to 100 A. Speed can be controlled by PWM signal, direction by digital DIR output - giving low (logical 0) or high (logical 1) state. The device also has a current flow sensor and the possibility to limit the motor current.

Specification:

• Number of channels: 1
• Power supply voltage: 6.5 V to 30 V
• Operating voltage of the logical part: 1.8 V to 5 V
• Continuous current: 17 A
• Maximum instantaneous current (up to 10 ms): 100 A
• PWM frequency: up to 100 kHz
• Current sensor sensitivity: 0.02 V/A
• Security:
• against reverse connection of the supply voltage
• against too low a supply voltage
• before a short circuit

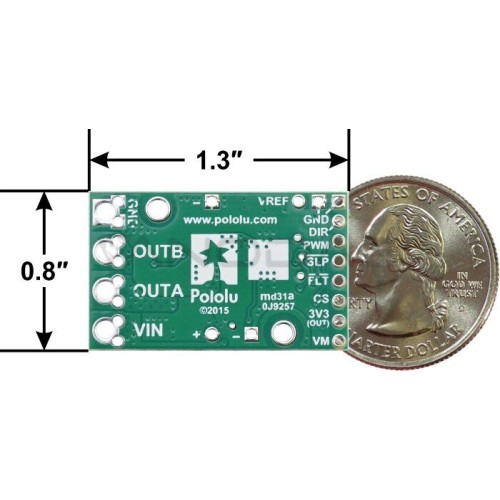

• Dimensions: 33 x 20 mm
• Weight: 3.3 g (without connectors)

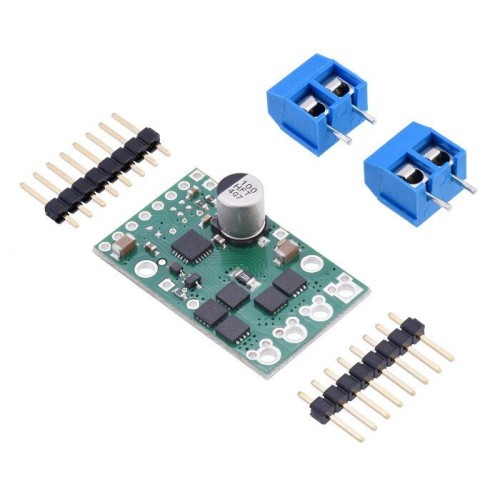

• Module, goldpin and screw connections included
