FY019 linear electric actuator 2000N 10mm/s stroke 150mm

Brand: Wagney
Product Code: MX-IW-FY019-24-10-150
Availability: Temporarily Out Of Stock
119.60€
Ex Tax: 98.84€

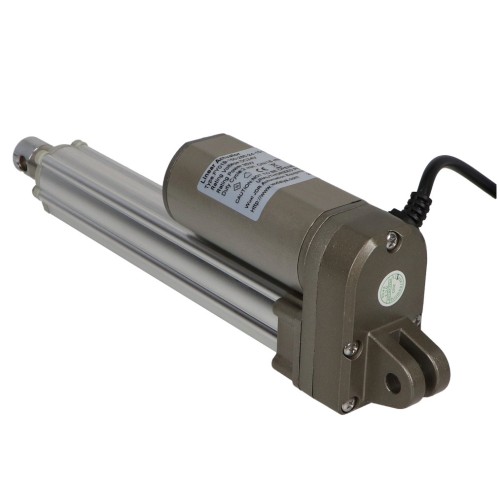

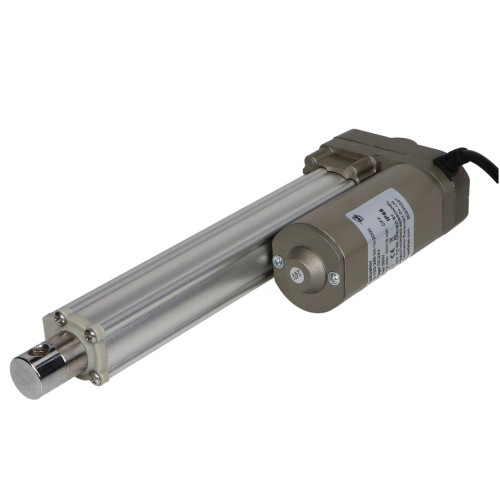

The FY019 series linear actuator is an industrial, waterproof electric actuator with a load capacity of 2000N and a stroke of 150mm, dedicated to high loads.

Applications of linear actuators:
  • Opening windows and doors
  • Linear drives of machine elements
  • Widely used in agriculture and automotive - extendable chutes, foldable steps
  • Implementation of "Tracking" in photovoltaic installations
  • Realization of movement of equipment elements of intelligent buildings
  • Replacing pneumatic actuators in places where there is no access to compressed air installations
Construction of a linear actuator:

The housing of the FY019 electric actuator is made of a durable aluminum alloy, the piston rod is a thick-walled polished steel pipe. Additional seals and hermetic connections of actuator elements ensure tightness at the IP65 standard.

The actuator uses a cylindrical gear transmission on steel wheels with straight teeth, which guarantees long and failure-free operation. The gearbox is coupled to a screw mechanism built into the piston rod of the linear actuator. The screw mechanism consists of a trapezoidal screw with a high-strength polymer nut. This solution ensures long-term, failure-free operation of the mechanism due to the self-lubricating properties of the material from which the nut is made.

The actuator motor is a brushed DC motor with a rated power of 35W. The rated voltage for this actuator is 24V, which is a very common standard in industrial automation.

Installation of the electric actuator:

The electric actuator is mounted using 8mm pins, pivoting at its base and in the piston rod hole.

Electric actuator control:

The use of a classic DC brush motor ensures very simple actuator control. After applying voltage to the actuator terminals, it advances. After reversing the polarity of the supply voltage, the actuator folds. We can regulate the actuator's extension speed by adjusting its supply voltage.

Limit switches are permanently installed inside the electric actuator housing. They prevent the piston rod from extending too far or from getting stuck when retracting.

After applying the supply voltage, the actuator extends until it reaches full extension. Once full extension is achieved, the nut inside activates the limit switch and the actuator stops. After reversing the power supply polarity, the actuator retracts until it is fully retracted and activates the second limit switch.


Length L [mm]: 265
Series: FY019
Operating temperature [°C]: -15°C...+45°C
Protection class: IP 65
Speed: 10 mm/s
Force: 2000 N (200 kg)
Range L: 150 mm
Supply voltage: 24 VDC
Maximum current: 2.2A
Limit switches: Not adjustable
Feedback: None
