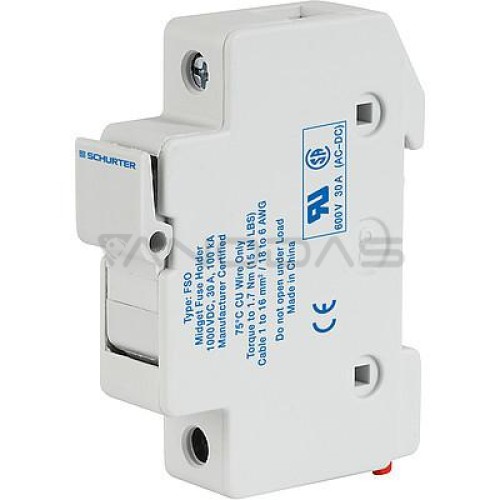

Fuse holder cylindrical fuses 10.3x38mm DIN 30A 1000VDC FSO SCHURTER

Technical Data:

• Fuse-Link 10.3 x 38mm
• Mounting DIN-Rail Mounting
• Terminal Press plate 2 - 10 mm² / AWG #8 - 14
• (stranded), 2 - 6 mm², AWG #10 - 14
• (solid), 2 Nm / 17.7 lb-in (max. torque)
• Rated Voltage 1000VDC (Self certified), 600VAC/
• DC (UL/CSA)
• Rated current 30A (UL/CSA)
• Rated Power Acceptance IEC 4W
• max. 4 W (self certified)
• Degree of Protection IP20
• Admissible Ambient Air Temp. -40°C to 130°C
• Material: Socket Thermoplastic, UL 94V-0
• Unit Weight 54 g
• Storage Conditions 0°C to 60°C, max. 70% r.h.
• Product Marking Type, Tech. Information
