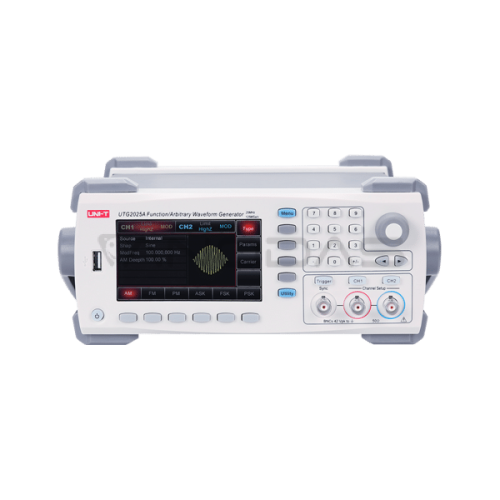

Function generator Uni-T UTG2025A

Function generator Uni-T UTG2025A, number of channels 2

Specifications:

• Analogue bandwidth: 25 MHz
• Number of channels: 2
• Sampling speed: 125 MS / s
• Generated waveforms: sine, square, ramp, pulse, noise, direct current, arbitrary
• Operating modes: active / inactive output, continuous, modulated, sweeping, series
• Modulation types: AM, FM, PM, ASK, FSK, PSK, PWM
• Sine wave: 1 µHz ~ 25 MHz
• Square / pulse: 1 µHz ~ 5 MHz
• Ramp: 1 µHz ~ 400 kHz
• Noise waveforms (-3 dB): 25 MHz band
• Resolution: 1 µHz
• Accuracy: ± 0.5 ppm (25oC)
• Power supply: 100V ~ 240V AC average, 50/60 Hz
• Screen: 4.3 TFT LCD (480x272 px)
• Dimensions: 265x110x320mm
• Weight: 3.2kg

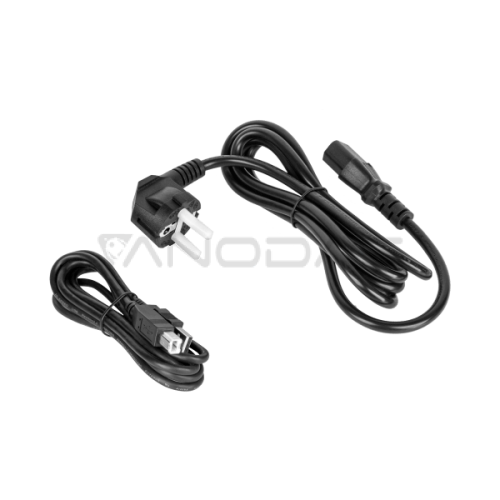

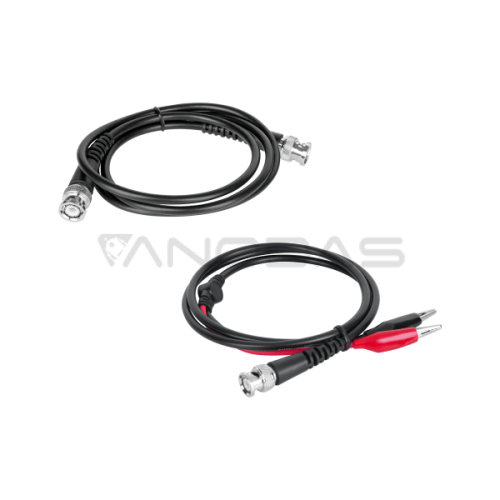

• Included: power cable, USB cable, 2x BNC cable

• Frequency range: 1 µHz ~ 5 MHz
• Record length: 8 ~ 8 Mpts
• Vertical resolution: 14 bits
