FONA 808 Shield, GSM and GPS module for Arduino, Adafruit 2636

Brand: Adafruit
Product Code: AN-07663
Availability: Temporarily Out Of Stock
87.60€
Ex Tax: 72.40€

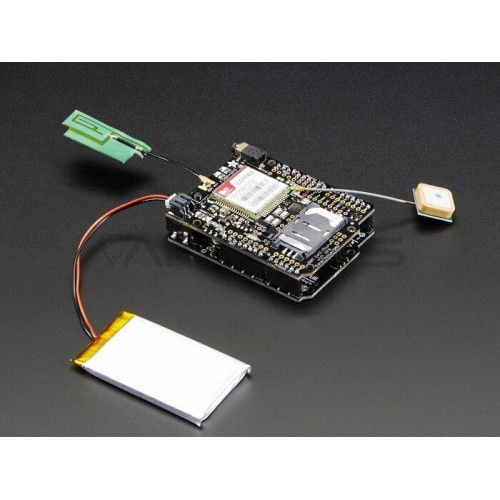

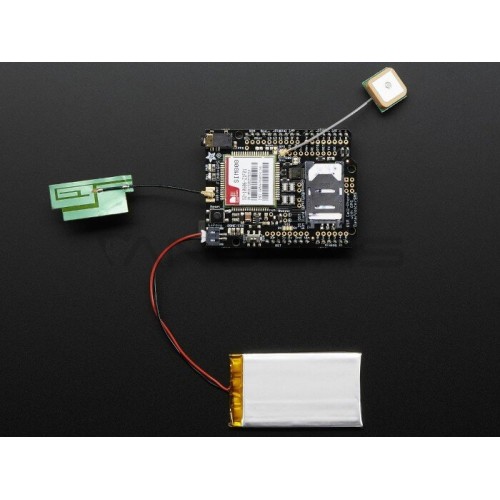

The module is working with Arduino, which provides connectivity in GSM and GPRS. It allows for voice calls, sending SMS messages. It also has a GPS module. On the Board are: connectors for SIM card, output and input audio in the standard Jack 3.5 for headphones and microphone, and a slot u.FL for external antenna. Built-in battery charger Li-Pol allows using the device without AC power. To power the module, you must use a Li-Pol 3.7 V with a capacity of not less than 500 mAh. A built-in switch indicates if the battery powers the system or if it is currently being charged.

Specification:

  • Driver: SIM808
  • Supported standards: GSM / GPRS
  • Frequencies: 850 / 950 / 1800 / 1900 MHz
  • The ability to make voice calls
  • Connection Jack 4 pin: for headphones and microphone
  • The ability to send and receive SMS messages
  • The ability to send and receive data via GPRS (TCP/IP, HTTP, etc.)
  • Embedded controller of the buzzer (buzzer should be attached separately): allows for silent notifications
  • Support for AT command
  • Built-in battery charger Li-Pol
  • 2 connectors u.FL: to connect external antennas GSM and GPS
  • Indicating LEDs
  • GPS module: MT3337
  • Sensitivity: -165 dBm
  • The ability to track up to 22 satellites
  • Cold start: 32s
  • Warm start: 5s
  • Hot start: 1s
  • Accuracy: about 2.5 m
  • Board sizes: 69 x 54 mm
  • Weight: 19 g

Useful links:
Manufacturer website
Manual
