FlowTech™ CHT High Flow - CM2™ Nozzle

Brand: Micro Swiss
Product Code: PRM-16166
Availability: 4-7 business days
Planuojama gavimo data po užsakymo: 2025-05-12
44.20€
Ex Tax: 36.53€

Qty

Microswiss and Bondtech have partnered to bring the High Flow, Hardened Tip CM2™ nozzle to the FlowTech ecosystem. This new nozzle incorporates proprietary CHT technology, specifically designed to enhance the filament flow rate. Core of the nozzle is made of high-temperature Copper Chromium Zirconium and plated with an Electroless Nickel Plating. This special alloy retains its strength at much higher temperatures compared to a regular copper alloy. The tip of the nozzle is made of M2 Hardened High Speed Steel and coated with a special
WS2 nonstick nano coating.

CHT - CM2™ Nozzle Features:
  • Copper Chromium Zirconium body
    • Plated with an Electroless Nickel Plating
  • M2 Hardened High Speed Steel insert
    • Plated with an Electroless Nickel Plating
    • Coated with nonstick nano WS2 coating.
    • Coefficient of friction: 0.035
    • Heat-treated hardness:
      68 HRC
  • High Flow CHT Technology
    • The FlowTech nozzle, equipped with Bondtech CHT technology, can achieve a maximum volumetric flow rate of up to 50 mm³/sec
    • More uniform layer deposition is achieved by splitting the filament
      flow into multiple chambers as it passes through the melt zone. This reduces gaps and weak points between layers
  •

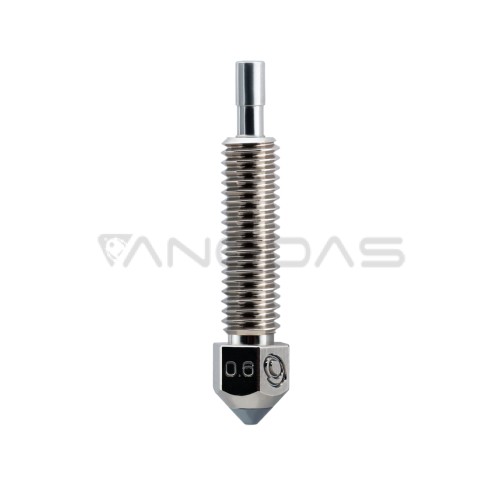

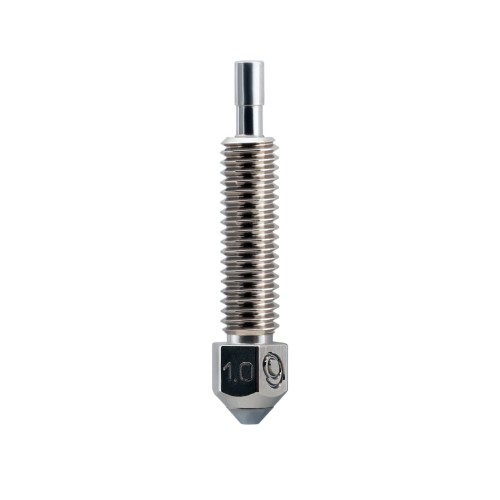

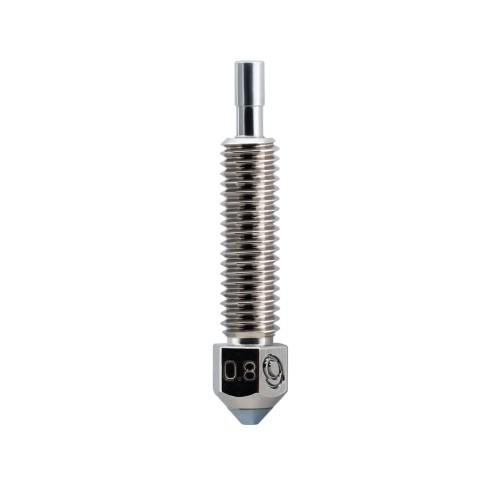

    Orifice size available: .4mm, .6mm, .8mm, 1.0mm


Made in Sweden by Bondtech
Assembled in USA by Microswiss
