FFC/FPC adapter - 40-pin - SB Components 26388

Brand: SB components
Product Code: AN-22939
Availability: Temporarily Out Of Stock
6.90€
Ex Tax: 5.70€

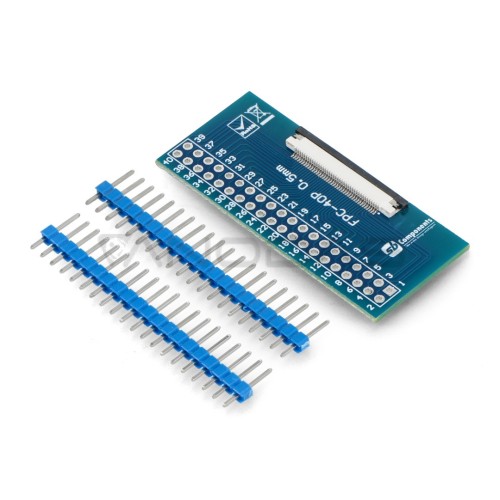

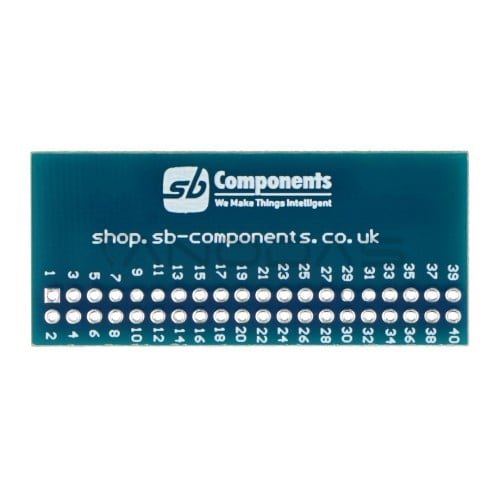

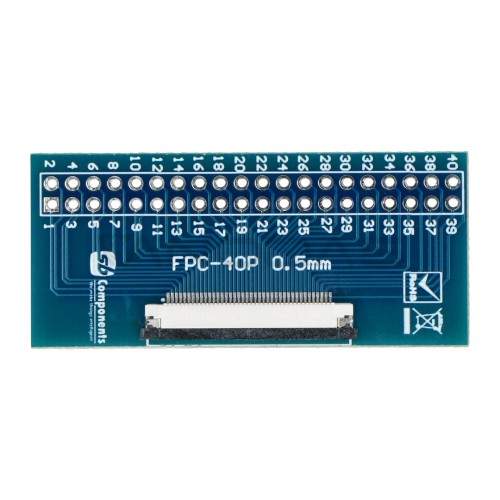

The FFC/FPC adapter from SB Components allows you to connect displays more easily and create connections between boards using FFC/FPC tapes. The FFC connector used with a pitch of 0.5 mm has a bottom contact and a sliding protection against slipping out. All 40 connector pins are placed on the board as numbered 2 x 20 solder pads, with a pitch of 2.54 mm. The dimensions of the adapter are 52.65 x 23.62 mm. The kit includes two goldpin strips for self-soldering.

Specification:
  • Type: FFC/FPC adapter
  • Connector type: bottom contact, 40 pins
  • FFC/FPC connector pitch: 0.5 mm
  • Pins: 2 x 20 solder pads
  • Pin pitch: 2.54 mm
  • Dimensions: 52.65 x 23.62 mm
Set includes:
  • FFC/FPC adapter - 40-pin - SB Components 26388
  • 2x 20-pin goldpin connector, 2.54 mm pitch
