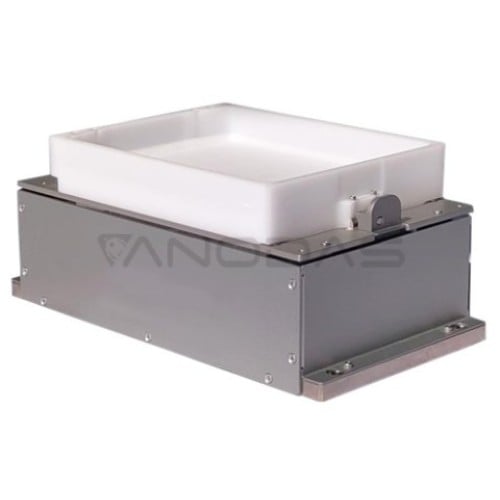

FF220 Flexible Feeder

The DOBOT FF220 Flexible Feeder simplifies the feeding process to achieve feeding automation, solving the problem of difficult loading of metal sheet parts and irregular parts in the manufacturing industries. It supports quick switching of production lines and meets the flexible production needs of small batches and multiple varieties.

Main features:

• The feeder has strong adaptability and is suitable for feeding small and medium-sized parts in most scenarios. It supports quick switching of production lines for different product types
• The feeding is gentle and without noise pollution
• Fast vibration speed with accurate parts positioning
• High reliability and long service life
• Easily integrated and deployed

Specification:

• Exterior Dimensions: 316 mm × 171 mm × 131 mm
• Pick-up Window Dimensions: 195 mm × 150 mm × 105 mm
• Typical Part Size: 2 to 40 mm
• Dimensions of Mounting Holes: 301 mm × 125 mm × φ6.6 mm
• Weight of Feeder and Backlight Panel: 8 kg
• Maximum Payload of Pick-up Window: 0.5 kg
• Vibration Surface Amplitude: G ± 3 mm
• Maximum Displacement of Vibration Plate: 2-3-2
• Maximum Vibration Frequency: 100 Hz (configurable)
• Vibration Height Limit for Suspension Products: 50 mm
• Backlight Color: White
• Communication Interface for Test Software: Standard RS-232 Serial Port
• External Trigger Mode: Triggered by passive I/O
