Fermion, Pulse Oximeter and Heart Rate Monitor, MAX30102, I2C, DFRobot SEN0344
Brand: Dfrobot
Product Code: AN-19196
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-19
Product Code: AN-19196
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-19
Ex Tax: 20.17€

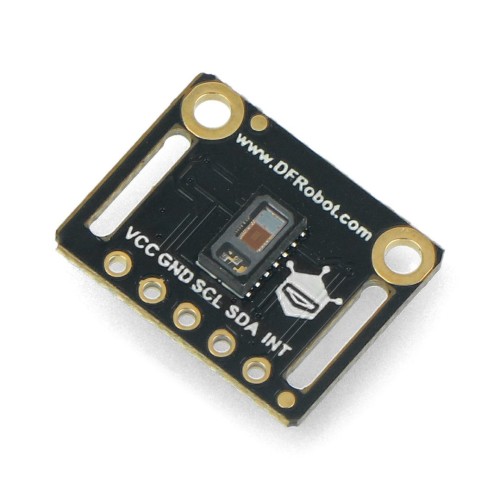

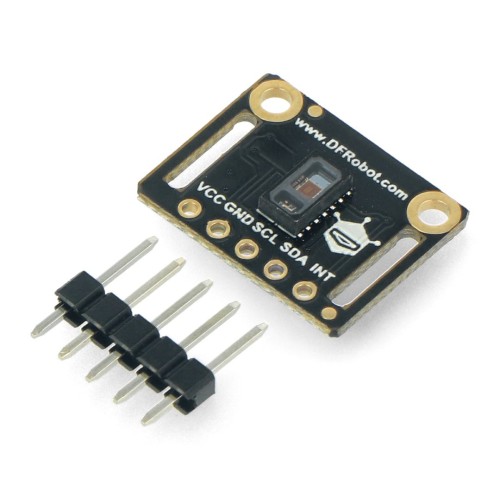

Sensor module with integrated MAX30102 chip from DFRobot. This is an integrated pulse oximetry biosensor module that allows you to measure heart rate and monitor saturation, or SpO2. The module is based on PPG (Photo Plethysmo Graphy). Its small size means that it can be placed on the finger (as a finger pulse oximeter) or worn on the wrist for data acquisition.
Specification:
Specification:
- Module: pulse oximeter and heart rate sensor
- Embedded chip: MAX30102
- Compatible with most controllers
- Internally integrated 18-bit ADC
- High SNR
- High sampling rate
- Low standby current
- Supply voltage range: 3.3 V to 5 V
- Operating current: <5 mA
- Power supply current for RED / IR LEDs: 0 mA to 50 mA
- Communication interface: I2C bus
- Interface address: 0x57
- Operating temperature: from -40 °C to 85 °C
- Module dimensions: 18 x 14 mm
- Fermion: pulse oximeter and heart rate monitor
- Connector goldpin 1x5 - 2,54 mm
