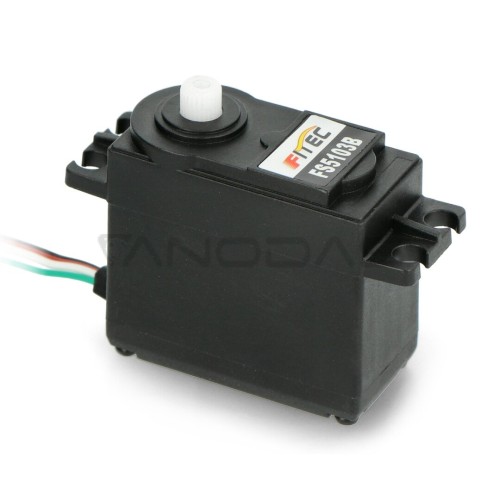

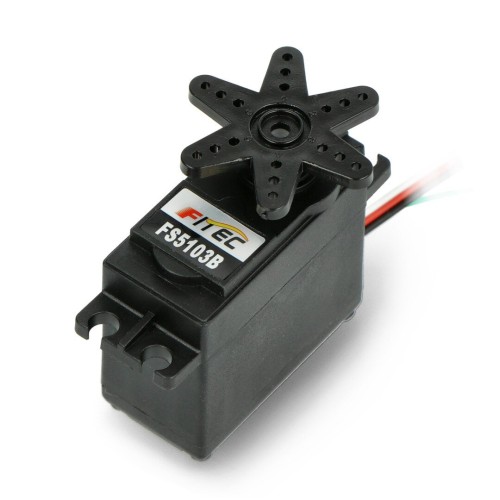

Feetech Standard Servo FS5103B-FB with Position Feedback

Brand: Feetech
Product Code: AN-17183
Availability: Temporarily Out Of Stock
12.20€
Ex Tax: 10.08€
Feetech servo FS5103B-FB is a specially modified version of the analog servo FS5103 providing access to the built-in potentiometer through an additional green cable, this solution allows direct measurement of the output angle. The working angle is from 0° to 180° in the pulse range up to 600µs to 2400µs.

Specification:
  • Supply voltage: 4.8 V to 6 V
  • Movement range: 0° to 180°
  • Type: analog
  • The speed at 4.8 V: 0.18 s/60°
  • Torque: 3 kg/cm
  • The speed at 6 V: 0.16 s/60°
  • Torque: 3.8 kg/cm
  • Dimensions: 40.8 x 20.1 x 38 mm
  • Weight: 43 g

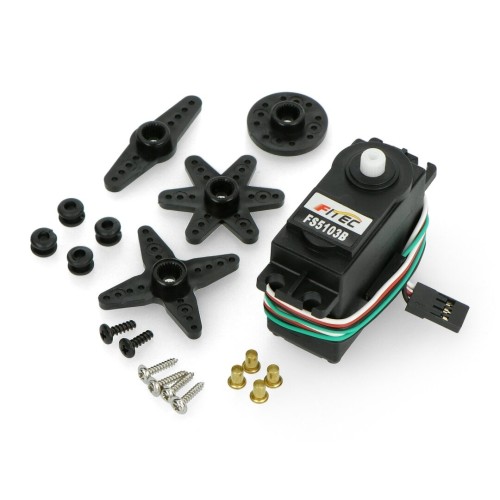

Set includes:
  • Servo
  • Orks
  • Mounting screws
