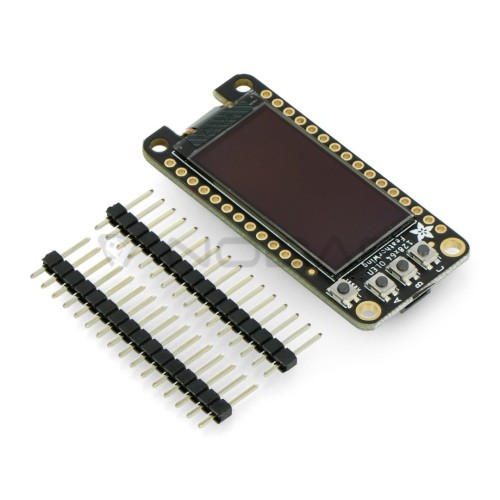

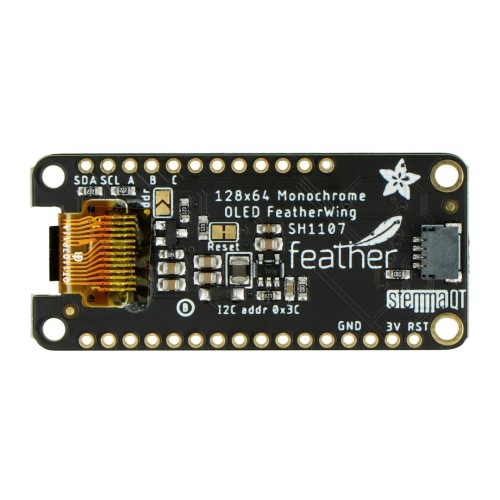

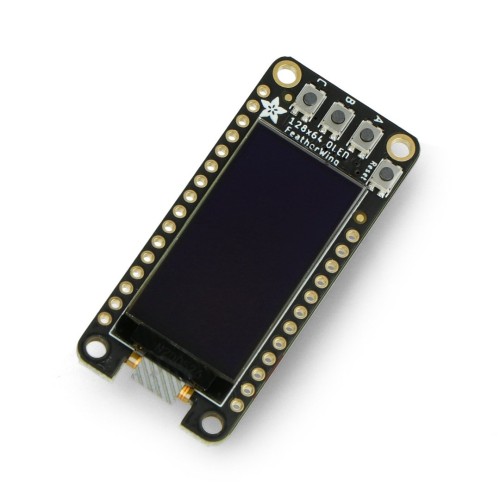

FeatherWing OLED display 128x64 px, pad for Feather, STEMMA QT / Qwiic, Adafruit 4650

Feather overlay with a monochrome OLED display with 128x32 px resolution. The screen diagonal is 1.3" and the high contrast of the display makes the presented data extremely readable. The display produces its own light and does not need additional backlighting. Communication takes place via the I2C interface. The overlay for Feather has 4 buttons: reset and 3 general purpose buttons, which can be programmed at the user's discretion.

Specification:

• Display model: SH1107
• Resolution: 128x64 px
• Diagonal of the screen: 1,3"
• Power supply voltage: 3 V
• Interface: I2C
• Interface address: 0x3C with the possibility of changing to 0x3D (by soldering the ADDR jumper)
• Reset button: Yes
• Three buttons are built-in: A, B, and C
• Buttons A, B, and C are connected respectively:
• For Feather modules with 32u4 and M0 controller: pins 9,6 and 5
• For Feather Huzzah ESP8266 module: pins 0, 16 and 2
• Overlay Dimensions: 22.9 x 50.9 mm


Set includes:

• OLED display - Feather overlay
• Goldpin connectors


Useful links:
Manufacturer website
Manual
