Extension with breadboard for BBC micro:bit - SB Components SKU22717

Brand: SB components
Product Code: AN-21669
Availability: Vilnius Store Out of Stock
Kaunas Store Out of Stock
Central Warehouse In Stock
27.00€
Ex Tax: 22.31€

Qty

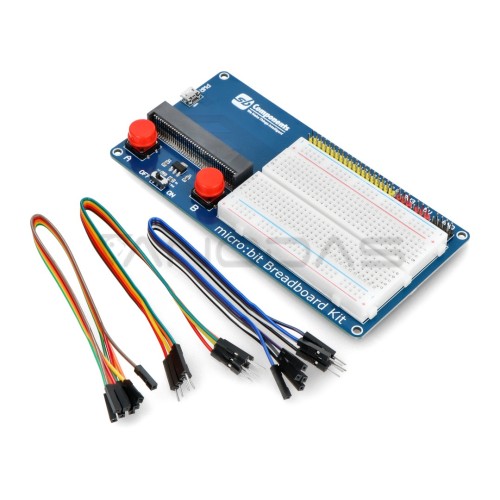

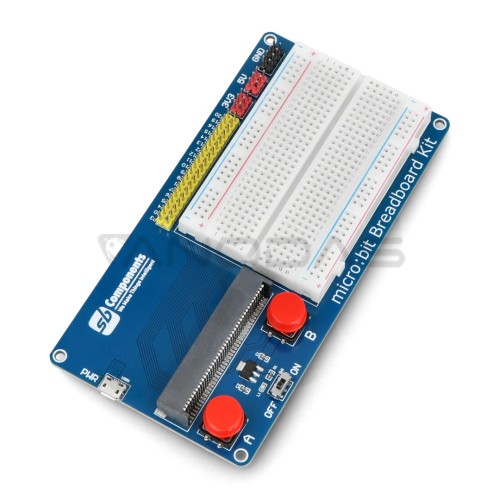

The expansion board for BBC micro:bit, developed by SB Components, is equipped with buttons, GPIO micro:bit pins and a contact plate. The BBC micro:bit module is connected to a dedicated connector located in the extreme part of the board, under it you can find two buttons A and B, which correspond to the buttons on the micro:bit module. There is a power switch between the buttons, while next to the micro:bit socket you can find the microUSB power/data port. On the other side of the board, you can find the pins of the BBC module, and under them, there is a small breadboard with 400 holes.

Specification:
  • Power supply: microUSB port
  • A and B button
  • Power switch
  • Conclusions:
    • GPIO micro:bit
    • section 5 V
    • section 3.3 V
    • GND section
  • Breadboard: 400 holes
  • Compatible with: BBC micro:bit
  • Dimensions: 146.5 x 75 mm
Set includes:
  • Extension module
  • Breadboard with 400 holes
  • 5x male-male cable
  • 5x female-female cable
  • 5x female-male cable
