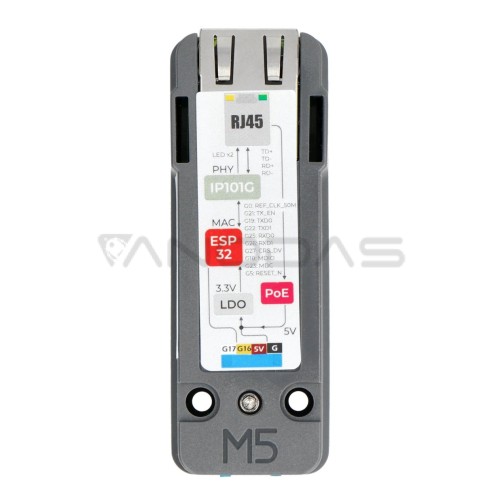

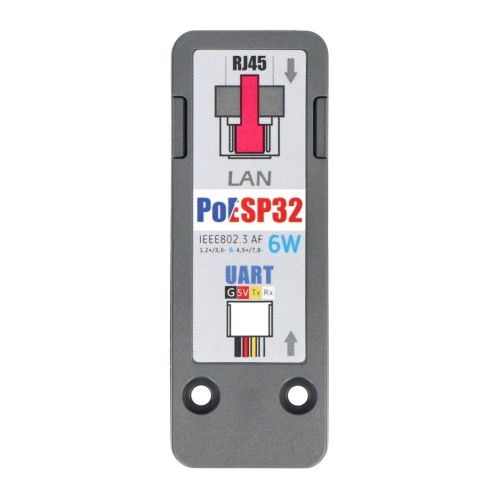

Ethernet communication module with PoE port - ESP32 - Expansion Unit for M5Stack development modules

• Equipped with ESP32 controller
• IP101G transceiver model
• IEEE 802.3 / 802.3u standard
• PoE IEEE802.3 AF standard with support for a maximum load power of 6 W
• RJ45 10/100 Mbps network port
• The default firmware is ESP-AT
• Support for TCP / MQTT / HTTP / CoAP and other protocols
• Connecting to the server with simple AT commands through the UART serial port

• Microcontroller: ESP32-WROOM-32U / D
• dual-core clocked at 240 MHz and 600 DMIPS
• 520 KB of SRAM memory (without integrated 3D antenna)
• does not support WiFi and Bluetooth wireless function
• Flash memory: 4 MB
• PHY: IP101G IEEE 802.3 / 802.3u
• MAC-PHY interface type: RMII
• PoE Standard: PoE IEEE802.3 AF
• Maximum power: 6 W

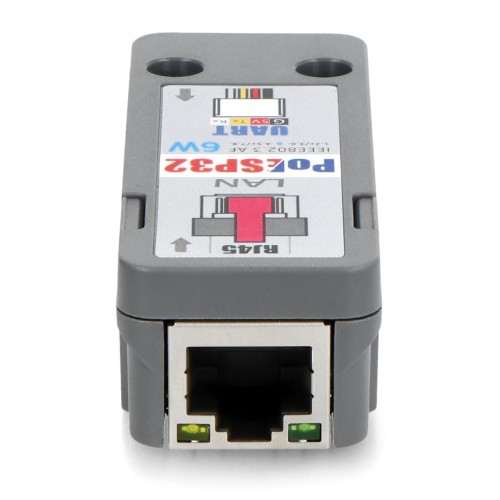

• Ethernet standard: RJ45 10/100 Mbps
• Communication interface: UART command control 9600 bps 8N1 AT
• Logic power supply: 3.3 V
• Module dimensions: 72 x 26 x 19.2 mm
• Weight: 26.2 g

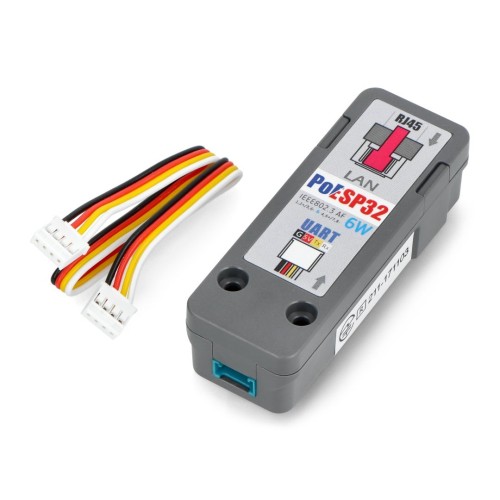

• ESP32 Ethernet Unit with PoE - Ethernet communication module with PoE port
• Connection cable 20 cm
