Epever Voltage inverter IP-PLUS (T) 2000W/4000W 24V LCD

Brand: Epever
Product Code: R0125
Availability: Temporarily Out Of Stock
318.50€
Ex Tax: 263.22€

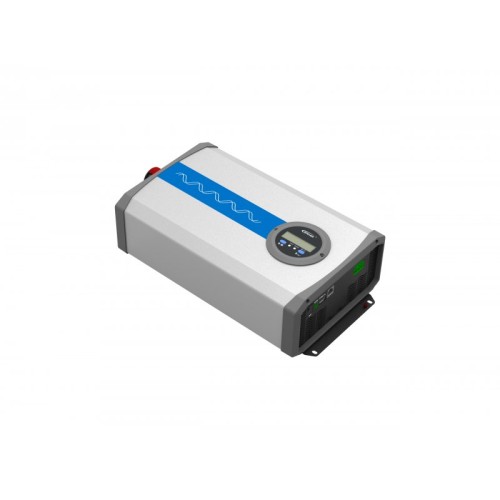

The product from the IP-PLUS series is a sinusoidal converter that converts the voltage of 24 V DC into 220 / 230 V AC. IPower converters are perfect for photovoltaic systems, thanks to the high input voltage threshold (32 V). The converter can be used, among others for powering lighting, equipment in motorhomes/caravans, small photovoltaic installations, etc.

Main features:

  • The waveform of the output voltage: pure sine wave
  • 220 / 230 V AC output voltage
  • LED indicators for operating status and faults
  • Low sterile consumption
  • Efficiency up to 93%
  • Input protection: Over voltage protection, under voltage protection
  • Output protection: Overload protection, short circuit protection
  • Overheating protection: Temperature responsive fan; The inverter shuts down automatically when it overheats
  • USB 5 V DC / 1 A connector

Specification:

  • IP2000W24V model
  • Continuous power: 2000 W
  • Power output 15min: 2000 W
  • Instantaneous power: 4000 W (5s)
  • Input voltage DC: 21.6 V - 32 V
  • The output voltage: AC 220 V - 230 V
  • The waveform of the output voltage: Sine wave (so-called pure sine)
  • The frequency of the output voltage: 50/60 ± 0.1 Hz
  • Efficiency at full load: > 93%
  • Idle current: < 1 A
  • USB 1 A port: Yes
  • Fixing: 6 mm
  • Dimensions: 421 × 213,5 × 123 mm
  • Mounting dimension: 395 × 145 mm
  • Weight: 6.5 kg
  • Working temperature: -20 ℃ ~ 45 ℃
  • Storage temperature: -35 ℃ ~ 70 ℃
  • Moisture: < 95% (N.C.)
  • Protection class: IP20
