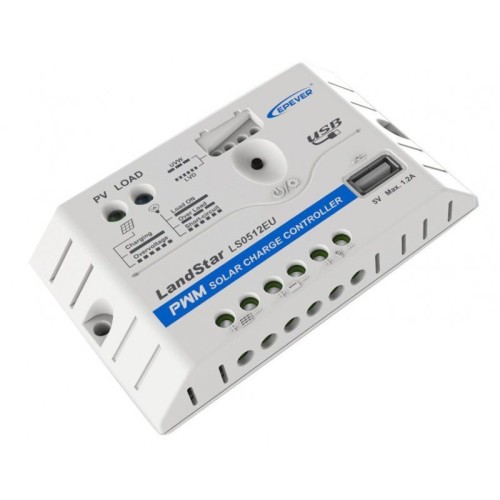

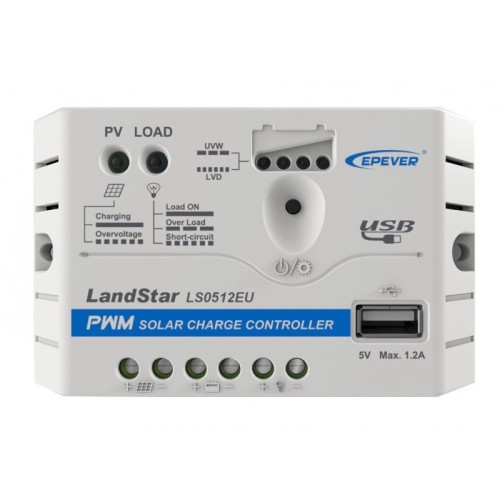

Epever PWM Charge Regulator LS0512EU 5A USB

Brand: Epever
Product Code: R0019
Availability: 6-10 business days
Planuojama gavimo data po užsakymo: 2025-05-14
24.80€
Ex Tax: 20.50€

Qty

The Epever LS0512EU 5 A charge regulator used in photovoltaic systems protects the battery against overcharging and excessive discharge. It is used in 12 V systems.

Main features:

  • The LS0512EU Charge Controller is a device that has been developed according to the latest available technology and has many unique features, such as easy and quick change of battery type selection at the push of a button
  • USB output thanks to which it is possible to charge a smartphone, tablet, etc.
  • The Charge Controller automatically adjusts to the system voltage of 12 V
  • Bright and easy-to-read charge status display
  • Four levels of battery charge
  • Automatic adaptation to the ambient temperature
  • Disconnecting the receiver when the voltage drops significantly
  • Up to 2.5 mm2 clamp diameter for connecting cables
  • Comprehensive electronic protection against overvoltage, short circuits, reverse polarity, overload, etc.
  • The device is dedicated to working with gel, acid and AGM batteries

Specification:

  • Model: LS0512EU
  • Nominal system voltage: 12 V DC
  • Max. PV circuit voltage: 30 V
  • Rated charging current: 5 A
  • Rated discharge current: 5 A
  • Battery input voltage range: 8 ~ 16 V
  • Low voltage disconnect voltage: 11.1 V
  • Own power consumption: ≤5 mA (12 V); ≤7 mA (24 V)
  • USB: 5 V DC / 1.2 A output port
  • The external dimension: 109.7 × 65.5 × 20.8 mm
  • Weight: 0.09 kg
  • IP20 housing
  • Mounting hole size: 4.5
  • 14 AWG / 2.5 mm2 terminal
  • Working temperature: -35 ℃ to 55 ℃
  • Humidity: ≤ 95% N.C.
