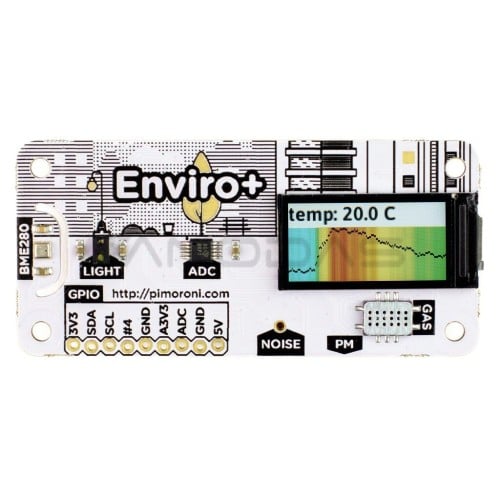

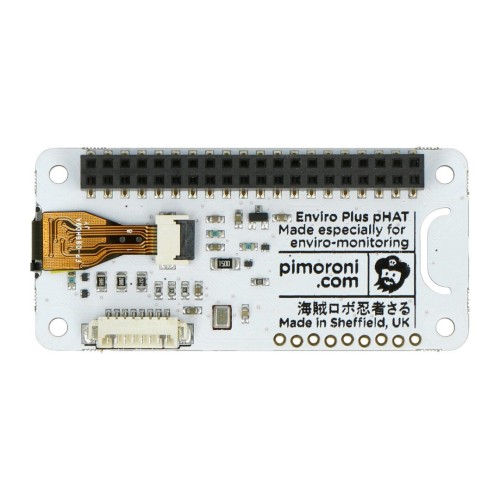

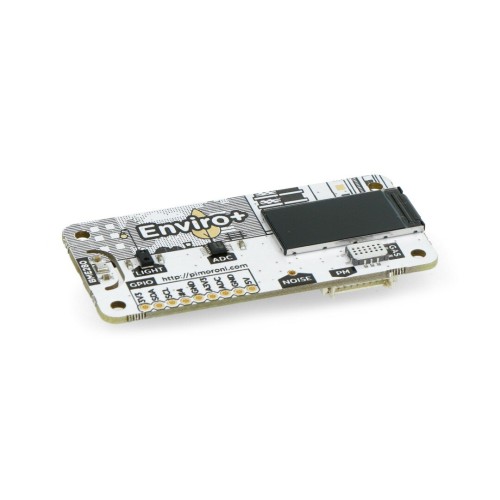

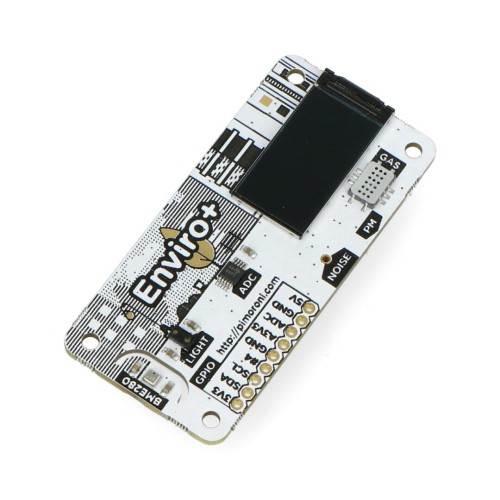

Enviro pHAT, temperature, humidity, pressure, light, gas, ADC sensor with microphone, HAT for Raspberry Pi

Overlay for Raspberry Pi equipped with BME280 temperature, pressure and humidity sensor, LTR-559 light and proximity sensor, MICS6814 analog gas sensor, ADC ADS1015 converter, MEMS microphone and 0.96" color LCD display. There is also a connector for the PMS5003 sensor on the board. The cover plate is fully compatible with the 40-pin GPIO connector of the Raspberry Pi miniature computer.

Specification:

• Temperature, humidity and pressure sensor - BME280:
• temperature measurement range: -40 °C to 85 °C
• humidity measurement range: from 0% to 100%
• pressure measurement range: 300 hPa to 1100 hPa
• Light intensity and proximity sensor - LTR-559:
• 6 measurement ranges from 0.01 lux to 64k lux
• Analog gas sensor - MICS6814:
• carbon monoxide CO: 1 to 1000 ppm
• nitrogen dioxide NO2: 0.05 to 10 ppm
• ethanol C2H5OH: 10 to 500 ppm
• H2 hydrogen: 1 to 1000 ppm
• ammonia NH3: 1 to 500 ppm
• methane CH4: up to 1000 ppm
• propane C3H8: up to 1000 ppm
• isobutane C4H10: up to 1000 ppm
• ADC converter: ADS1015
• Microphone: MEMS
• Display: 0.96" colour LED 160x80px
• Compatible with GPIO 40-pin Raspberry Pi connector
• Dimensions: 65 x 30 x 8.5 mm
