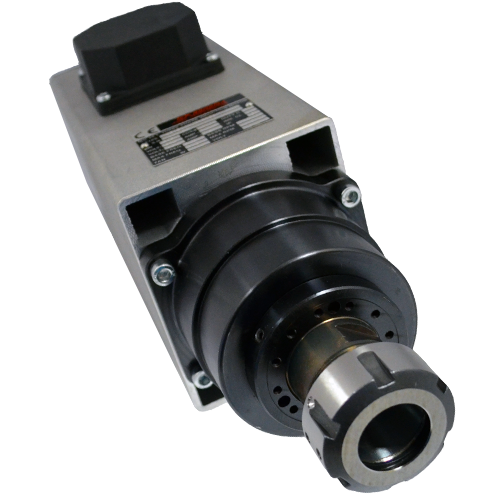

Electrospindle Teknomotor DB 5.6kW 18000rpm ER32

Brand: Teknomotor
Product Code: MX-C51-60-D-DB-P-ER32-5
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
1,565.50€
Ex Tax: 1,293.80€

Qty

Spindles are dynamically balanced at the factory and adapted to continuous operation. The allowable speed range of these electrospindles is from 6000 rpm to 18000 rpm. Teknomotor DB electrospindles are protected against the ingress of contaminants such as wood shavings, dry sawdust, aluminum shavings and PVC shavings.

DB series electrospindles are mainly used on CNC plotters, drills, deburring machines, machines for building PVC or aluminum windows and doors, and for robotic production processes (electro-spindle mounted directly on an anthropomorphic robot).

Tekonomotor DB series electrospindles with rated frequencies of 100 Hz; 200 Hz and 300 Hz, must work with frequency converters (pop. Inverter). The inverter for the electrospindle can be powered by single-phase, from the 1X230V network - then we connect the electrospindle in a "triangle" configuration. We can also choose a three-phase 3x400V inverter, then connect the electrospindle in a "star" fashion.


Handle: ER32
Supply voltage: 220/380 V
Engine power: 5.6 kW
Size: C51/60
Max. revolutions [rpm]: 18000
Frequency: 300 Hz
Bearing type: Angular contact
Cooling: Air
ATC: No
