Electromagnet pushing 12V 2kg type 2

Product Code: AN-19282
Availability: Temporarily Out Of Stock
26.80€
Ex Tax: 22.15€

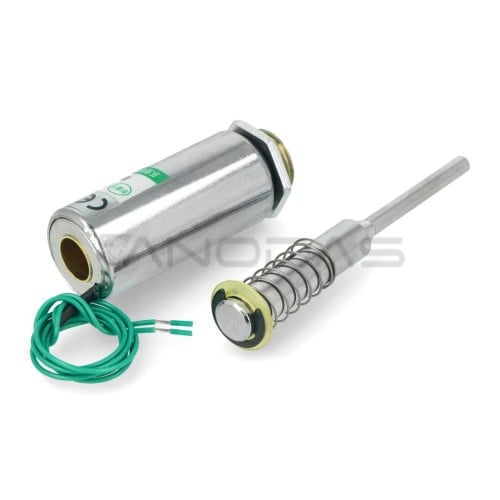

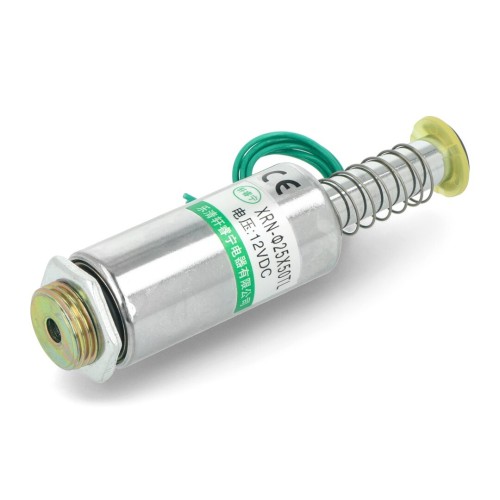

The push electromagnet is powered by 12 V, it can push a mass of 2 kg with a standard earth acceleration of 9.8 m/s2. The housing diameter is 25 mm and the housing length is 65 mm. The version of the electromagnet without the locknut on the bolt. The mounting hole is 18 mm. The electromagnet is equipped with two 25 cm long power wires with the insulation removed at the ends.

Specification:
  • Design: push version (pushing)
  • Supply voltage: 12 V
  • Pushing force: 2 kgf (pushes a mass of 2 kg for an earth acceleration of 9.8 m/s2)
  • Bolt stroke: 20 mm
  • Housing diameter: 25 mm
  • Housing length: 65 mm
  • Mounting hole: 18 mm
  • Length of power cables: 25 cm
  • Wires with stripped insulation at the ends
