Electromagnet holding 12V 1W 3kgf

Product Code: AN-17567
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-04
6.50€
Ex Tax: 5.37€

Qty

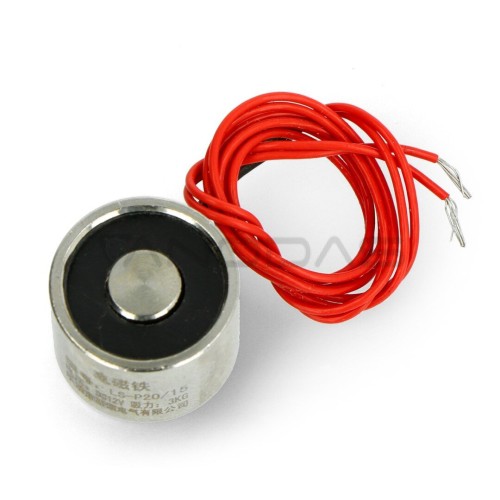

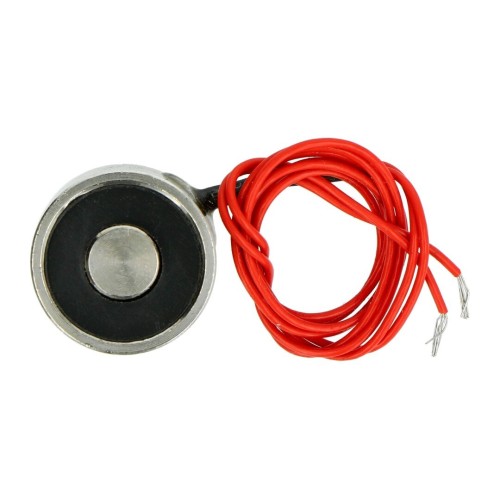

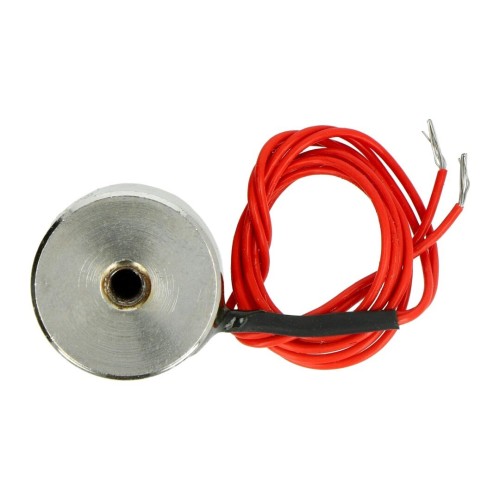

Holding electromagnet, supplied with 12 V. At standard ground acceleration of 9.8 m/s2 it holds a mass of 3 kg. Current consumption is 170 mA, nominal power is approx. 2 W. The product has dimensions: 20 x 8 x 15 mm. The housing has a mounting hole with an M4 thread, the appropriate screw is also included. The cables with the insulation removed at the ends are approx. 30 cm long.

Specification:

  • Power supply voltage: 12 V
  • Power: 2 W
  • Current consumption: approx. 170 mA
  • Load capacity: 3 kgf (maintains a mass of 3 kg for 9.8 m/s2 earth acceleration)
  • Cables with removed insulation at the ends, approx. 30 cm long

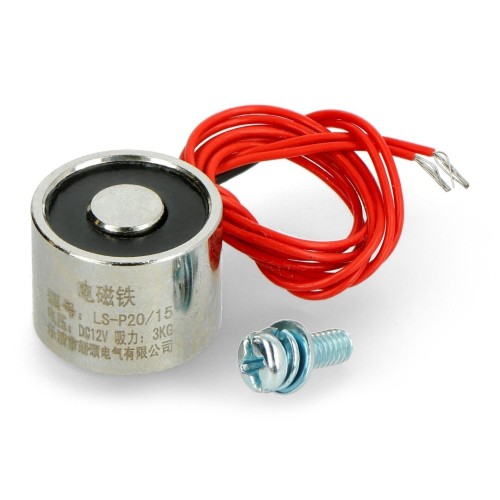

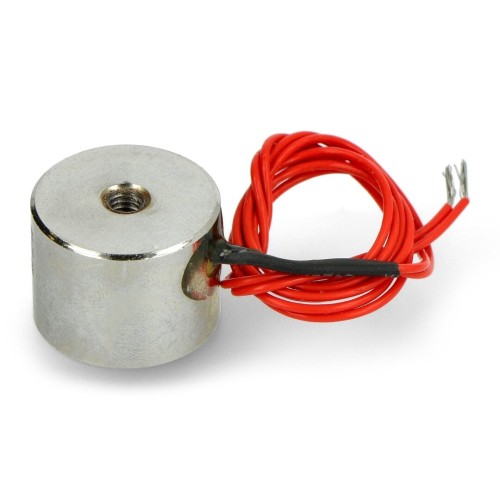

  • Mounting hole with M4 thread (screw included)
  • Dimensions: 20 x 8 x 15 mm
  • Weight: 25 g
