Electromagnet holding 12V 10W 80kgf

Product Code: AN-17581
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-16
33.30€
Ex Tax: 27.52€

Qty

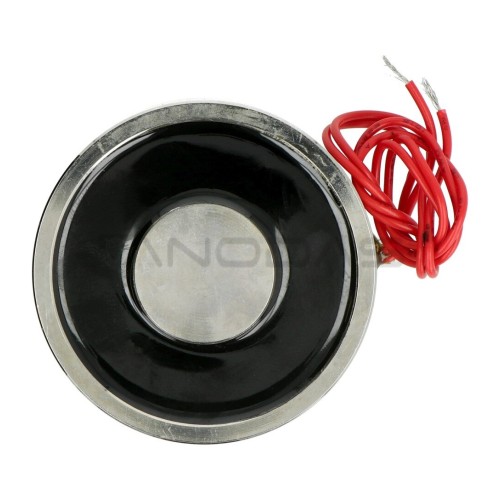

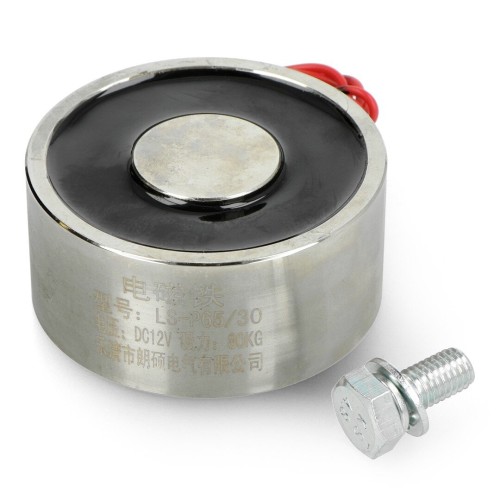

Holding electromagnet, supplied with 12 V. At standard ground acceleration of 9.8 m/s2 it holds a mass of 80 kg. Current consumption is 850 mA, nominal power is approx. 10 W. The product has dimensions: 65 x 26 x 30 mm. The housing has a mounting hole with an M8 thread, the appropriate screw and washer are also included. The cables with the insulation removed at the ends are approx. 30 cm long.

Specification:

  • Power supply voltage: 12 V
  • Power: 10 W
  • Current consumption: approx. 850 mA
  • Load capacity: 80 kgf (maintains a mass of 80 kg for 9.8 m/s2 earth acceleration)
  • Cables with removed insulation at the ends, approx. 30 cm long
  • Mounting hole with M8 thread (screw included)
  • Dimensions: 65 x 26 x 30 mm
  • Weight: 538 g
