Electromagnet 12V 3.5W - 4kgf

Product Code: AN-04599
Availability: Temporarily Out Of Stock
15.80€
Ex Tax: 13.06€

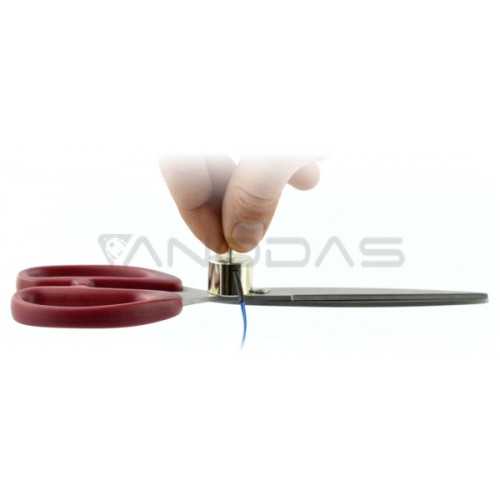

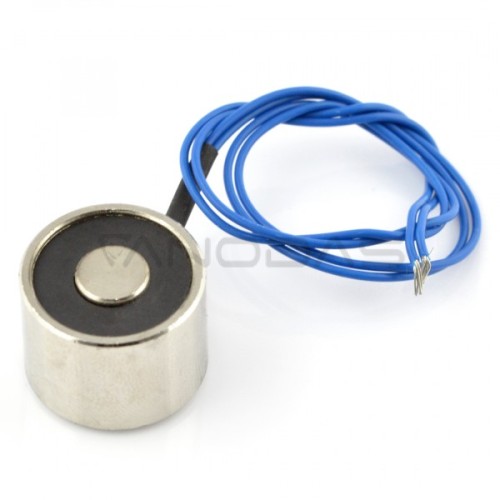

The holding electromagnet powered with the voltage of 12 V with a power of 3.5 W. It holds a weight of 4 kg in standard earth acceleration of 9.8 m/s2. Body diameter is 25 mm, and its height is 20 mm, for mounting used is the hole with the M3 thread. The device can be used as an actuator powered by any microcontroller, e.g. Arduino. Please note that an electromagnet consumes too much power to connect it directly to the pin of the microcontroller. For this purpose, you can use relay, optoisolator or transistor amplifier.

Technical data:

  • Supply voltage: 12V
  • Power: 3.5W
  • Current consumption: approx. 300mA
  • Body diameter: 25mm
  • Height of the body: 20mm
  • Load: 4 kgf (holds the weight of 4 kg for the gravitational acceleration of 9.8 m/S2)
  • The wires with insulation removed at the ends with the length of about 20 cm.
  • Mounting hole with the M3 thread (screws not included)
  • Weight : 50g
