Electricity meter (MID) 1 phase 230V 45A

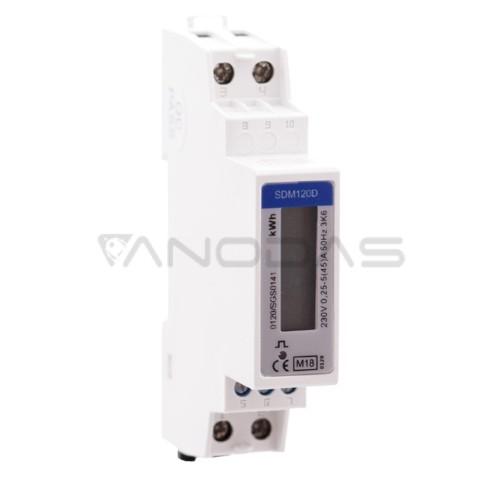

The SDM120D electricity meter (MID) is used to display the consumed single-phase AC electricity with Class 1/B accuracy. The meter complies with EU Directive 2004/22/EC. The device measures the amount of active energy (kWh) using a pulse output

Electricity meter (MID) 1 phase 230V, 45A

• The SDM120D electricity meter (MID) is used to display the consumed single-phase AC electricity with Class 1/B accuracy.
• The meter complies with the EU Directive 2004/22/EC, known as the MID Directive - 2004 March 31 measuring instruments directive.
• The device measures the amount of active energy (kWh) using a pulse output

Working parameters:

• Accuracy class 1
• International standard IEC 62053-21/EN, EN50470-1/3
• Operating temperature -20°C / + 55°C
• Storage temperature -40°C +/- 70°C
• Reference temperature +23°C +/- 2°C
• Humidity during operation ≤90%
• Humidity during storage ≤95%
• Start time 3 seconds
• Protection against water and dust ingress IP51
• Mechanical Environment M1
• Protection level II

Technical parameters:

• Nominal voltage: 230V
• Operating voltage: 176/276 V
• AC voltage resistance: 4kV-1m
• Surge resistance: 6kV1.2µS
• Current: 5A
• Maximum rated current: 45A
• Starting current: 0.4% lb
• Overload resistance: 30 Imax - 0.01 s
• Operating frequency: 50 Hz
• Power consumption: 50/60Hz
• Pulse output: Max2W/10VA
• Screen: 1000 imp/kWh
• Analog LCD screen
• Maximum reading: 99999.9kWh
