Easy Servo ES2-M22314-E5Z servo stepper motor 1.4Nm Leadshine

Brand: Leadshine Technology
Product Code: MX-IW-ES2-M22314-E5Z
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-14
107.30€
Ex Tax: 88.68€

Qty

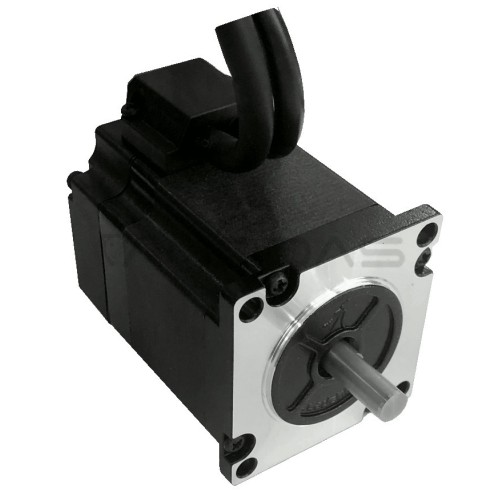

ES2-M22314-E5Z is a two-phase hybrid motor (stepper motor combined with an incremental encoder) with Nema23 size (57mm). Its holding moment is 1.4 Nm. The ES2-D508 and ES2-D808 controller fits this engine.


Length (mm): 74
Holding moment [Nm]: 1.4
Resist. phase [Ohm]: 0.42
Phase induction [mH]: 1.6
Weight [kg]: 0.9
Brake: No
Motor Size: NEMA23 (57mm)
Rotation/step [°]: 1.8
Current per phase [A]: 4
Rotor inertia [g.cm²]: 300
Encoder [imp/rpm]: 5000
IP65: No
Shaft diameter [mm]: 8
