E3D RapidChange Revo Voron - 1.75mm, 24V Single Nozzle Kit

Brand: E3D
Product Code: PRM-9156
Availability: Temporarily Out Of Stock
124.20€
Ex Tax: 102.64€

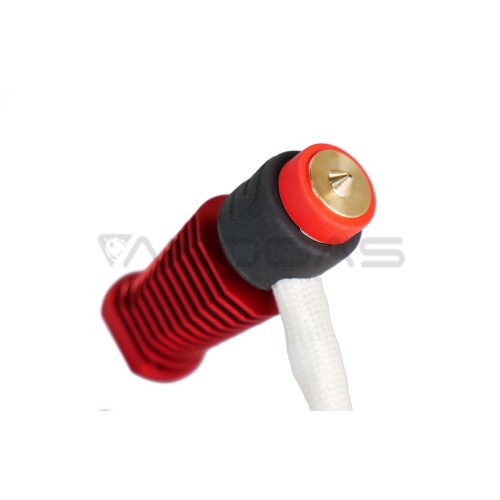

Smaller, lighter. Say hello to the Revo Voron - the HotEnd of choice for Voron 3D printers.
We’ve developed this Revo-compatible cold side in collaboration with Team Voron. It’s intended for use with the Voron StealthBurner, which includes an integrated cold side fan. It’s compatible with our Revo ecosystem, so you can change nozzle size without tools or hot tightening using just your fingers.
A groove at the bottom of the sink accepts a Revo HeaterCore spring.

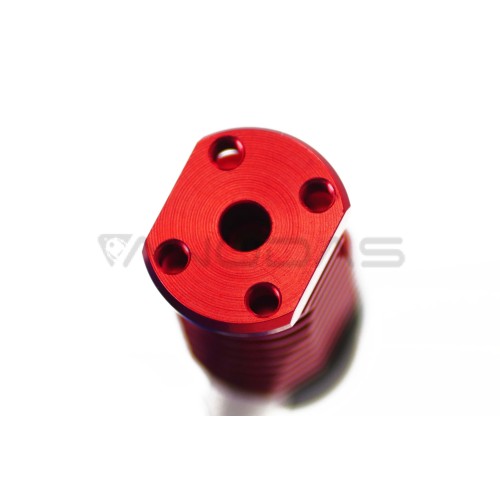

Includes an anodized red aluminum heatsink to complement your Voron accented parts.
Rigid mounting. This is a rigid-mounted design that uses four M3 x 0.5 bolts to secure your Voron 3D printer.
We’ve made this cold side (everything above the HeaterCore, including the receptacle for the Revo Nozzle) open hardware licensed under the GPL V3. This means if you have an alternative design for this, you are able to work with it.

Main features:

  • Uses Revo Nozzles - change nozzles cold, no tools, no hot tightening
  • Works with a Revo HeaterCore for faster heat-ups
  • Rigid mounting using 4 x M3 x 0.5 bolts
  • Ultra-lightweight construction for improved speed performance
  • Ideal HotEnd for Voron StealthBurner
  • The heatsink is licensed under GPL V3

Set includes:

  • 1 x Revo Voron Sink
  • 1 x Revo HeaterCore 12 V or 24 V
  • 1 x Revo spring
  • 1 x 100 mm 1.75 mm PTFE
  • 1 x Heater extension cable
  • 1 x Temperature sensor extension cable
  • 1 x 0.40 mm brass Revo Nozzle
