E-paper E-Ink 5.65'' 600x448px, seven-color display, SPI, Waveshare 18295

Brand: Waveshare
Product Code: AN-17310
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
78.50€
Ex Tax: 64.88€

Qty

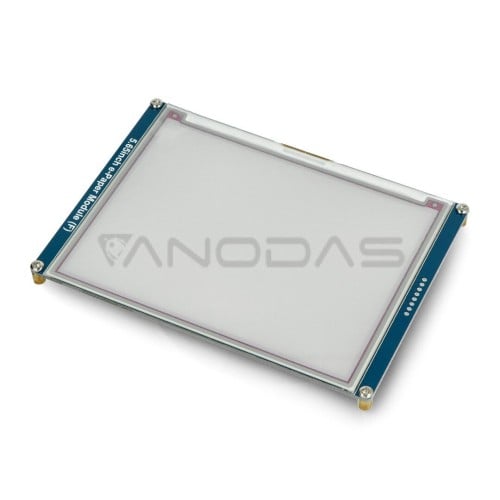

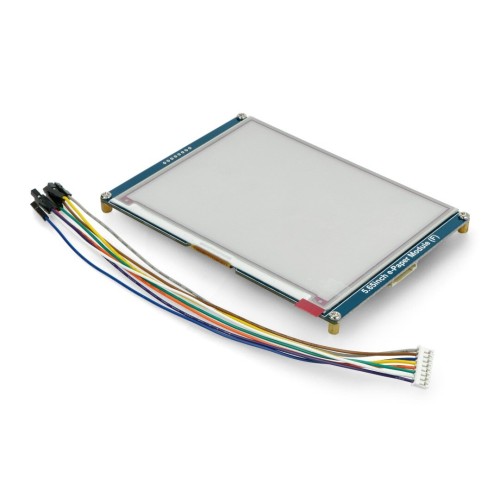

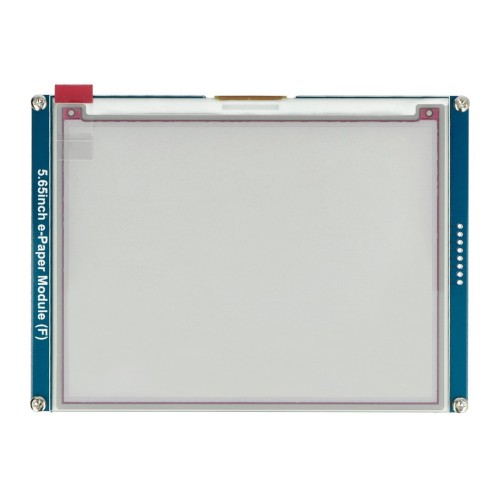

5.65" e-paper display with E-Ink technology. It has a resolution of 600x448px and displays the image in 7 colors. The displays of the e-paper series are characterized by low power consumption. They can be used, among others, as desktops for reading electronic books or magazines. The module is compatible with popular microcontrollers such as Raspberry Pi, Jetson Nano, Arduino, STM32, with which communication takes place via the SPI interface.

Main features:

  • ACeP Advanced Color ePaper technology displaying 7 colors
  • The last image received is displayed for a long time after the power is turned off
  • Low energy consumption
  • Communication via SPI interface
  • The module is compatible with popular microcontrollers such as Raspberry Pi, Jetson Nano, Arduino, STM32.
  • Thanks to e-paper technology, the device does not tire the eyes, unlike traditional screens
  • Provides a viewing angle of over 170°

Specification:

  • Power supply voltage: 3.3 V / 5 V
  • The interface: 3-wire SPI / 4-wire SPI
  • Diagonal: 5.65"
  • Resolution: 600x448px
  • Display dimensions: 114.9 x 85.8 mm
  • Pixel size: 0.1915 x 0.1915 mm
  • Displayed colours: 7 ACeP colours
  • Gray level: 2
  • Full refreshment time: 15s
  • Viewing angle: over 170°

Useful links:
Manufacturer website
Manual
