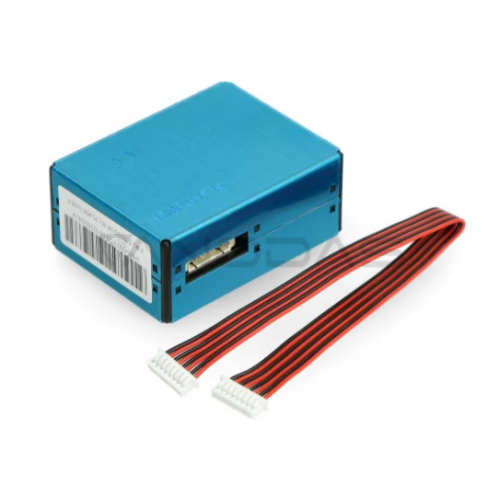

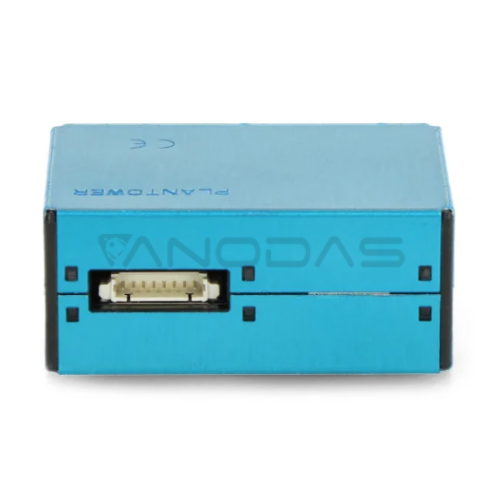

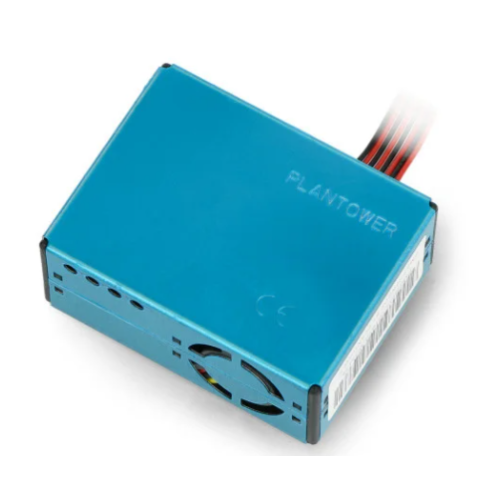

Dust/air quality sensor PM2.5 PMS5003 - 5V UART

Product Code: AN-06797
Availability: Temporarily Out Of Stock
26.80€
Ex Tax: 22.15€

Sensor of dust allows monitoring the air quality, measures the ratio of PM2.5. Equipped with a sensor that could detect particles with diameter more than 0.3 micrometers, such as cigarette smoke. The system is supplied with the voltage from 4.5 V to 5.5 V, interface UART.

Connection

  • The sensor has eight outputs, their description is in a table.
  • Pin 1 VCC - power supply 5 V.
  • Pin 2 The weight of the device.
  • Pin 3 Pin SET
  • Pin 4 RXD / I2C_SCL - receiver, UART / clock line of the I2C bus. Works with a voltage of 3.3 V.
  • Pin 5 TXD / I2C_SDL - transmitter UART / clock line of the I2C bus. Works with a voltage of 3.3 V.
  • Pin 6 Reset. Works with a voltage of 3.3 V.
  • Pin 7 Pin PWM.
  • 8 Pin Selection between UART and I2C. Low state is the choice of UART, high state - I2C.
Specification

  • Supply voltage: 4.5 V to 5.5 V
  • Consumption current: under 100 mA
  • Sensitivity:
  • 50% for 0.3 µm
  • 98% for 0.5 µm and larger
  • Response time: less than 10 seconds.
  • Operating temperature: -20°C to 50°C
  • Tile sizes: 50 x 38 x 21 mm
