Dust/air quality sensor PM1.0/PM2.5/PM10 - 5V UART - PlanTower PMSA003-A

Brand: PlanTower
Product Code: AN-17769
Availability: 4-6 business days
Planned delivery date after ordering: 2024-12-20
34.20€
Ex Tax: 28.26€

Qty

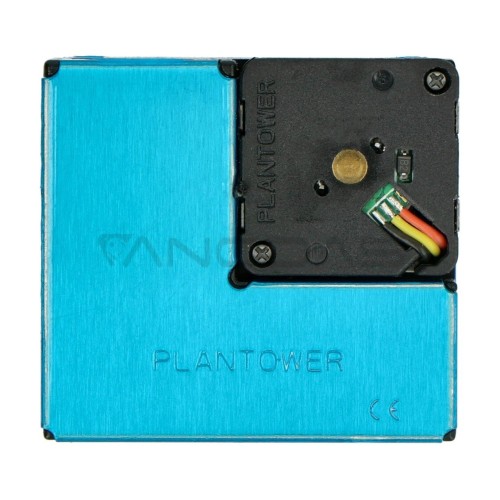

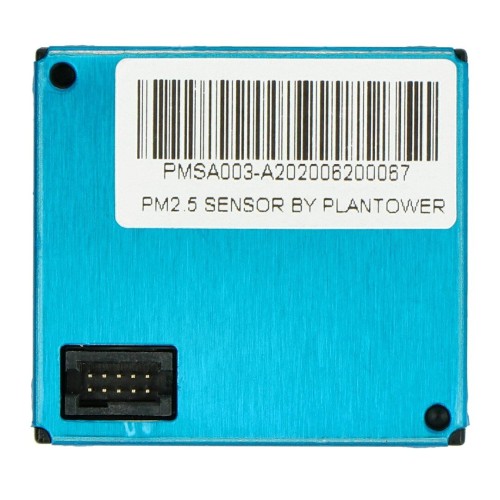

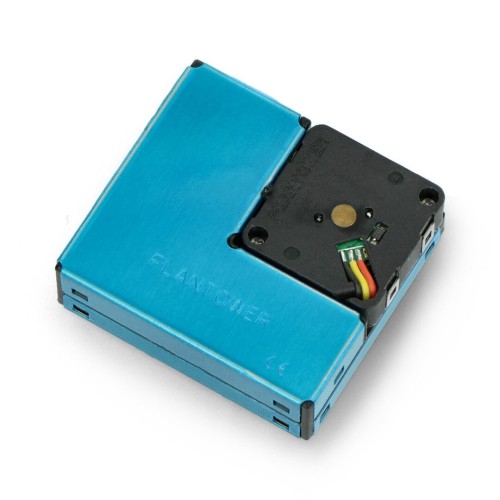

Dust sensor module that allows you to measure the degree of air purity. Enables precise analysis of the pollution in the environment, and measures the concentration of PM1.0 / PM2.5 / PM10 particles. During the measurement, detects 0.3 μm diameter particles. The PMSA003 sensor supply voltage is 5 V. The communication between the sensor and the microcontroller is via the UART interface.

Specification:
  • Developer: PlanTower
  • Supply voltage: from 3.3 V to 5 V
  • Current consumption: up to 100 mA
  • Interface: UART
  • Measurement range:
    • from 0.3 µm to 1.0 µm
    • from 1.0 µm to 2.5 µm
    • from 2.5 µm to 10 µm
  • Sensitivity:
    • 50% for 0.3 μm
    • 98% for 0.5 μm and greater
  • Working temperature: from -5 °C to 60 °C
  • Response time: less than 10 seconds
  • Data interface level: 3.3 V
  • Connector: 10 pin 1.25 mm
  • Silver color
  • Dimensions: 38 x 35 x 12 mm
  • Weight: 20.7 g
