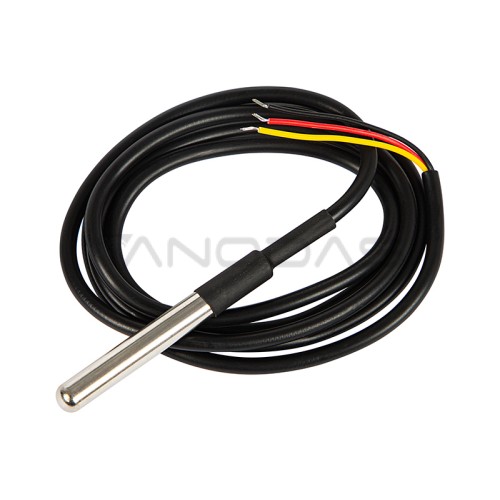

DS18B20 temperature sensor 1m

Brand: OEM
Product Code: 50-335
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-07-11
3.80€
Ex Tax: 3.14€

Qty

Digital, waterproof temperature sensor DS18B20. Perfect for use on microcontrollers like Arduino or RaspberryPi. This ensures accurate temperature measurement while keeping the cost low. This allows three-wire or two-wire operation (parasitic mode). It is ideal for projects that require continuous temperature measurement.

Specifications:

  • Material: stainless steel (waterproof)
  • Current voltage during operation: 3V - 5.5V
  • Temperature measurement scale: -55°C - + 125°C
  • Measurement accuracy: 0.5°C (-10°C - +85°C)
  • Signaling: TL, TH
  • Temperature readings in degrees Celsius
  • Ability to set resolution from 9 to 12 bits (at 0.5°C - 0.25°C, 0.125°C and 0.0625°C)
  • Interface: 1 wire
  • Default resolution: 12-bit
  • Each sensor has its own unique number, so it is possible to read from many sensors in one input
  • The maximum measurement range of the thermometer is from -55°C to +125°C, but in this range the measurement error can be higher (up to ±2°C).
  • Temperature reading at 12-bit resolution in less than 750ms
  • TH,TL configuration and settings can be stored in non-volatile EEPROM memory
  • Steel head with a diameter of 6mm and a length of 50mm
  • Cable length: 1m (PVC - no higher than 100°C)
  • Color: black
