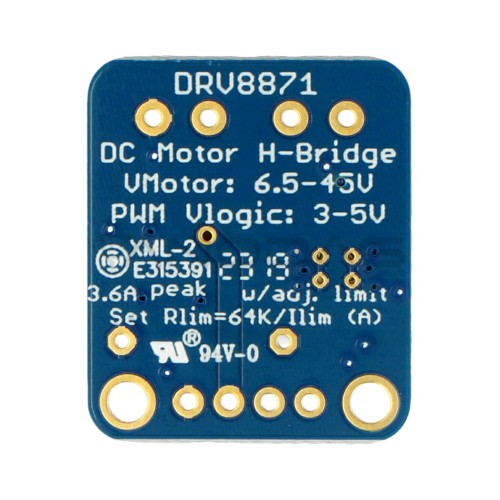

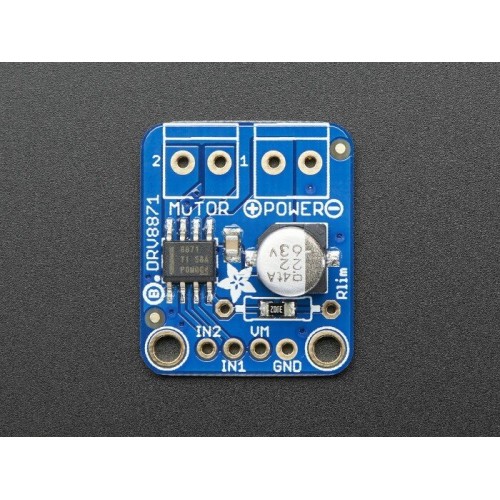

DRV8871 Brushed DC Motor Driver Breakout, Adafruit 3190

Brand: Adafruit
Product Code: AN-07043
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
15.10€
Ex Tax: 12.48€

Qty

The module based on the DRV8871 allows controlling one DC motor. The motor can be supplied with a voltage of up to 45 V with continuous current consumption of up to 2 A, and an instantaneous (for several seconds) up to 3.6 A.

Specification:

  • Number of channels: 1
  • Power supply voltage: 6.5 V to 45 V
  • Operating voltage of the logical part: up to 5.5 V
  • Continuous current per channel: 2 A
  • Maximum current per channel: 3,6 A
  • Control of PWM
  • Thermal protection
  • Overcurrent protection
  • Under-voltage protection
  • Dimensions: 24.4 x 20.4 x 9.7 mm
  • Weight: 2.2 g (without connectors)

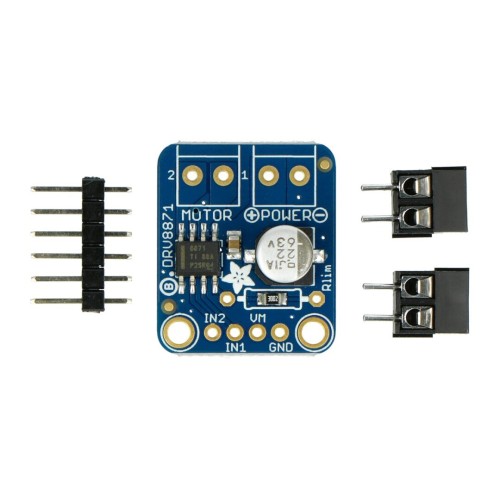

  • Included module and goldpin and screw connections
