DRV8835, two-channel 11V/1.2A engine controller, overlay for Raspberry Pi, Pololu 2753

The module based on the DRV8835 allows you to control motors with supply voltages up to 11 V and continuous current consumption up to 1.2 A. The controller can also withstand current peaks of up to 1.5 A for several seconds. The speed can be controlled with a PWM signal.

Specification:

• Supply voltage: 2 V to 11 V
• Supply voltages of the logical part: from 2 V to 7 V
• Continuous output current per channel: 1.2 A
• Continuous output current at channel connection: 2,4 A
• Maximum instantaneous current per channel: 1.5 A
• Maximum instantaneous current when connecting channels: 3,0 A
• PWM frequency: up to 250 kHz
• Protection against incorrect power supply
• Dedicated to Raspberry Pi B+ connectors
• Python library for easy module operation
• Dimensions: 51 x 14.5 mm
• Weight: 2.5 g (without connectors)

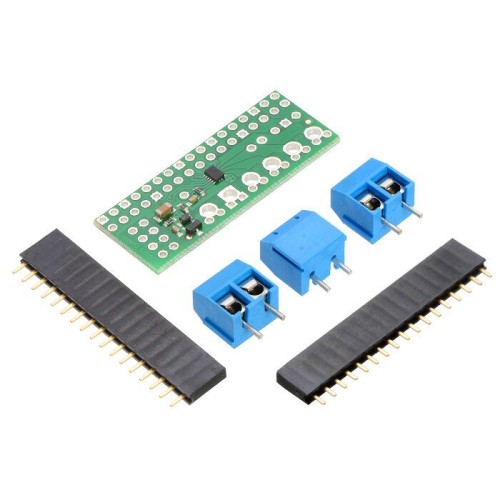

Set includes:

• Module
• Screw connectors
• Goldpin strip for self-soldering


Useful links:
Manufacturer website
