DRV8835 dual, 2-channel motor driver 11V/1.2A, Shield for Arduino, Pololu 2511

Brand: Pololu
Product Code: AN-02671
Availability: Temporarily Out Of Stock
15.50€
Ex Tax: 12.81€

The module based on the DRV8835 allows you to control motors with supply voltages up to 11 V and continuous current consumption up to 1.2 A. The controller can also withstand current peaks of up to 1.5 A for several seconds. The speed can be controlled with a PWM signal.

Specification:

  • Supply voltage: 2 V to 11 V
  • Supply voltages of the logical part: from 2 V to 7 V
  • Continuous output current per channel: 1.2 A
  • Continuous output current at channel connection: 2,4 A
  • Maximum instantaneous current per channel: 1.5 A
  • Maximum instantaneous current when connecting channels: 3,0 A
  • PWM frequency: up to 250 kHz
  • Protection against incorrect power supply

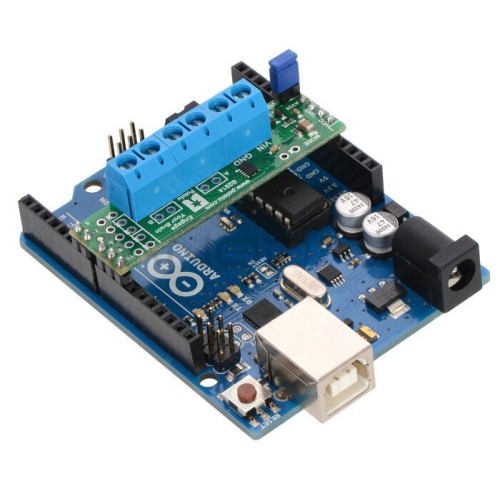

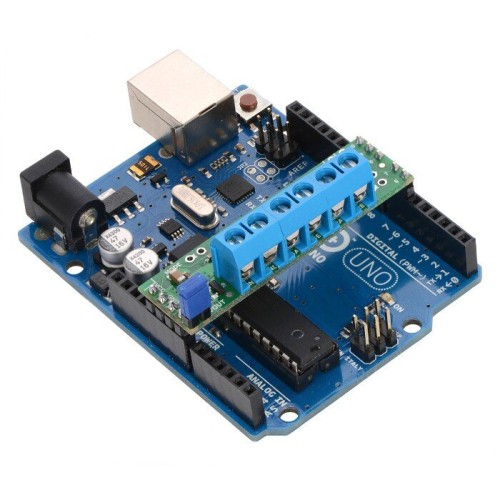

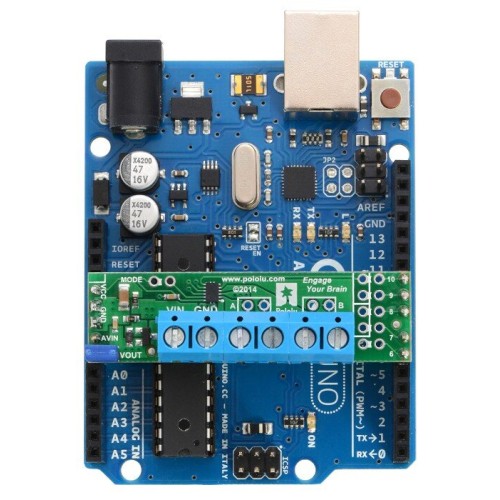

  • Works with Arduino Uno, Leonardo, Mega 2560
  • Arduino library for easy handling

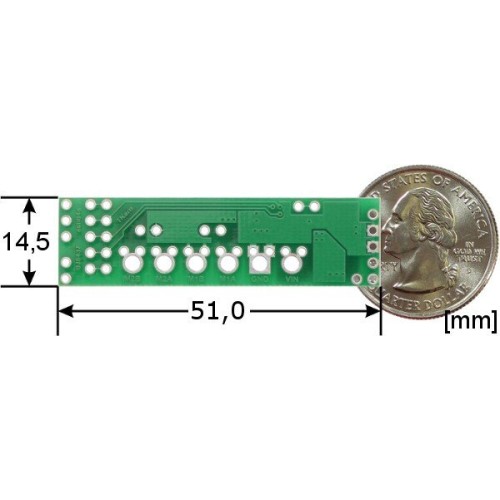

  • Dimensions: 51 x 14.5 mm
  • Weight: 2.5 g (without connectors)

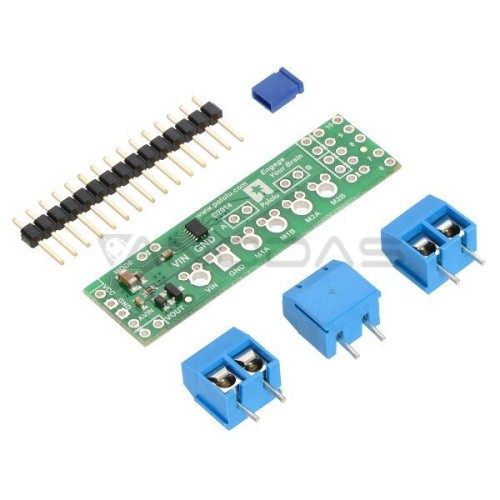

Set includes:

  • Module
  • Screw connectors
  • Goldpin strip for self-soldering

Useful links:
Manufacturer website
