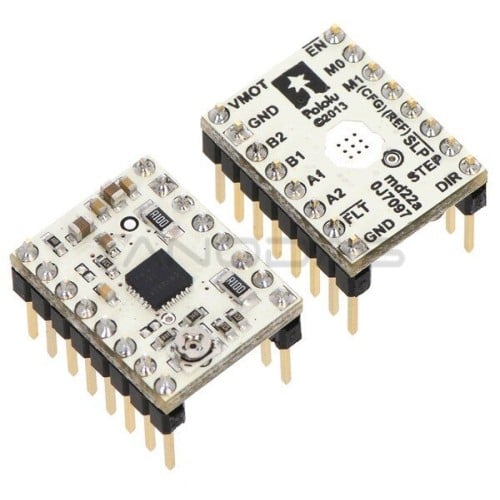

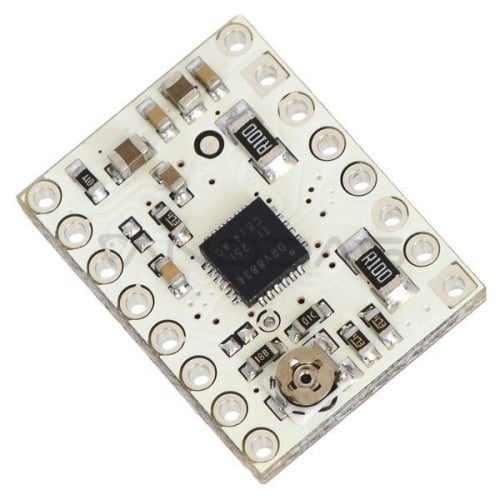

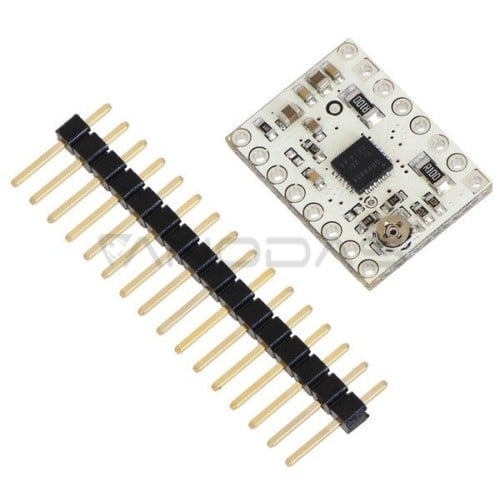

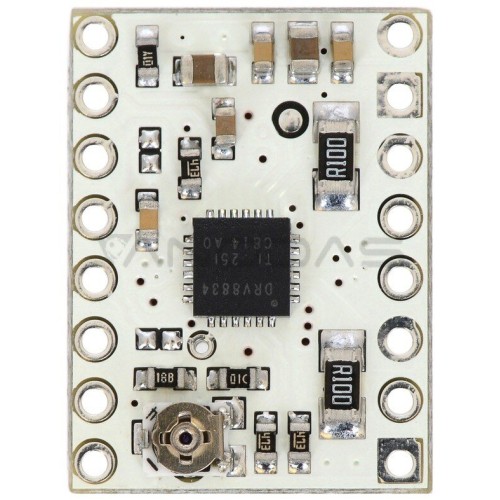

DRV8834 stepper motor driver Low-Voltage 10.8V 2A, Pololu 2134

Brand: Pololu
Product Code: AN-01418
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-11
14.90€
Ex Tax: 12.31€

Qty

Stepper motor controller based on the DRV8834 system allows you to control a motor with a current consumption of up to 1.5 A (momentary up to 2 A) per coil, with voltage from 2.5 V to 10.8 V. It has six modes of operation: full-step, 1/2, 1/4, 1/8, 1/16 and 1/32 step.

Main features:

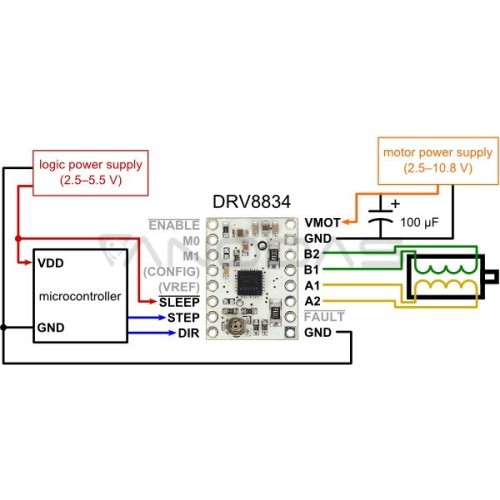

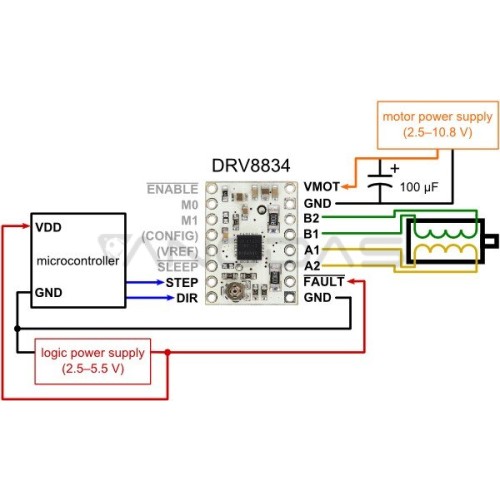

  • The module features a simple interface for step and directional control
  • It can operate in six modes: full, half, 1/4, 1/8, 1/16 and 1/32 step
  • It provides control of the maximum motor current by means of a potentiometer, which allows for the use of a supply voltage higher than the rated motor voltage, so you can get a higher step speed
  • The motors can be supplied with voltages from 2.5 V to 10.8 V
  • Current consumption up to 2 A per coil (continuous 1.5 A)
  • Thanks to the integrated voltage regulator, the user does not have to supply additional power to the logical part
  • The DRV8834 works with systems with both 3.3 V and 5 V logical part voltages
  • It has protection against too high a current, temperature, short-circuit, and a start blocking system for too low a supply voltage
  • In order to increase the heat-retaining surface, the board is made in four-layer technology with a thicker copper cover
  • An exposed ground field on the underside allows for the soldering of cooling elements
  • The module is compatible with the A4988 controller in terms of size and outputs

Specification:

  • Power supply voltage: 2.5 V - 10.8 V
  • Continuous current on the coil: 1,5 A
  • Maximal instantaneous current per coil: 2 A
  • The supply voltage of the logical part: 2.5 V - 5.5 V
  • The modes of operation: 1, 1/2, 1/4, 1/8, 1/16, and 1/32 steps

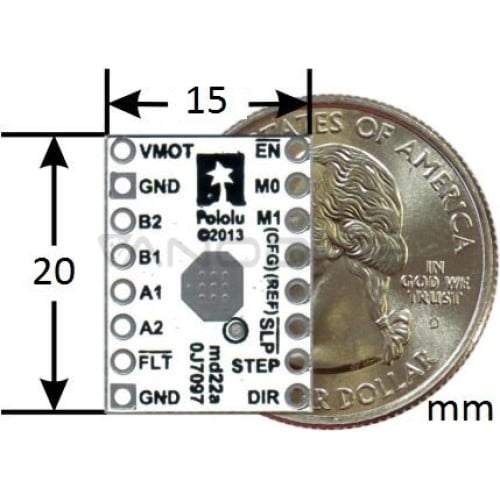

  • Dimensions: 20 x 15 mm
  • Weight: 1.6 g (without connectors)
