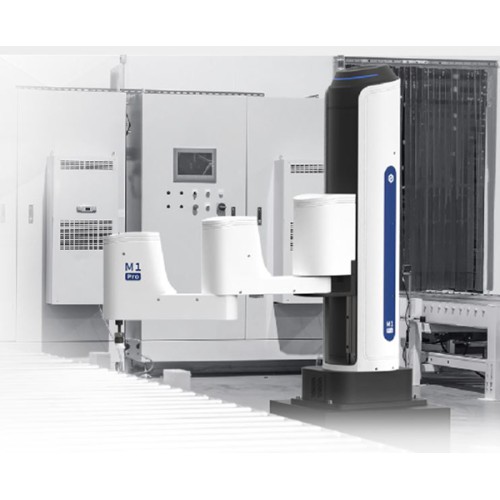

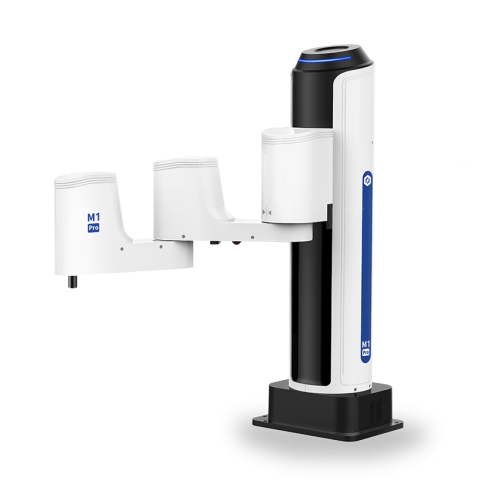

DOBOT SCARA Robot Arm M1 Pro

DOBOT M1 Pro is a cost-effective intelligent robotic arm for the light industry. With high precision, a wide working range, complete functions, and secondary development, it provides users with more ways to use it. M1 Pro can realize multiple functions of assembly line work such as soldering, visual recognition, and PCB plug-in, helping to construct the intelligent industrial system.

The M1 Pro builds inherits and advances the capabilities of the M1, and integrates Dobot’s cutting edge software and hardware platforms, making it ideal for the manufacturing needs of the light industry as it can perform even more complicated tasks.

The M1 Pro has an all-in-one compact design that integrates the control box and removes the need for additional wiring. With plug-and-play capability and high portability, the M1 Pro saves on setup time.

Equipped with collision detection feature for human-machine collaboration. Its forearm is 40% narrower than a traditional industrial robotic arm which significantly reduces accidental bumping into and damaging the robot.

Calibration is greatly simplified with scripting and graphical programming, wired and wireless connections to PCs, tablets, smartphones, and other terminal devices.

The added encoder interface supports dynamic grabbing and tracking functionalities, multithread, and on-the-fly I/O controls to reduce motion cycle time.

Main features:

• Support WiFi and Bluetooth connection, connect to multiple arms at once
• Complete the setup in 20 minutes and put it into use within an hour
• Programmable via the integrated APIS
• With a force-sensitive 3D mouse to control it precisely
• Highly extendable, with a camera for visual

Specification:

• Weight: 15.7 kg
• Maximum Payload: 1.5 kg
• Working Radius: 400 mm
• Repeatability: ±0.02 mm
• Rated Voltage: 100 ～ 240V AC, 50/60 Hz
• Range of Motion:
• J1: ±85°
• J2: ±130°
• J3: 5 mm ~ 245 mm
• J4: ±360°
• Maximum Joint Speed:
• J1: 180° /s
• J2: 180° /s
• J3: 1000 mm/s
• J4: 1000° /s
• Communication Interface: TCP/IP, Modbus TCP, Modbus RTU

Set includes:

• M1 Pro Arm
• Power Supply
• Network Cable
• Emergency Switch
• Serial Port Line
• Screw Driver
