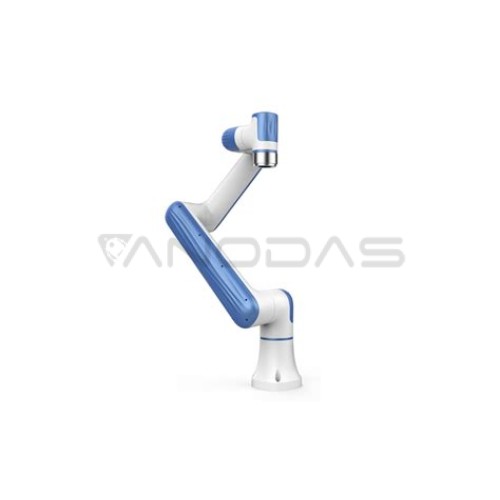

DOBOT Nova 5 Robot Arm

Brand: Dobot
Product Code: DOBOT NOVA5
Availability: On Order
11,860.00€
Ex Tax: 9,801.65€

Qty

The DOBOT Nova Series comes with 2 kg and 5 kg maximum payload options. Nova cobots are ultralight and easy to use. Multiple built-in safety features ensure versatility across various commercial applications, including beverages, restaurants, physiotherapy and more. Customizable outer shell colors allow for coherent styling in stores.

Nova 5 has an 850 mm working radius to easily reach massage spots such as the neck, back and waist. Dobot’s proprietary precision pressure control algorithm offers an unparalleled experience.


Specification:

  • Weight: 14 kg
  • Rated Load: 5 kg

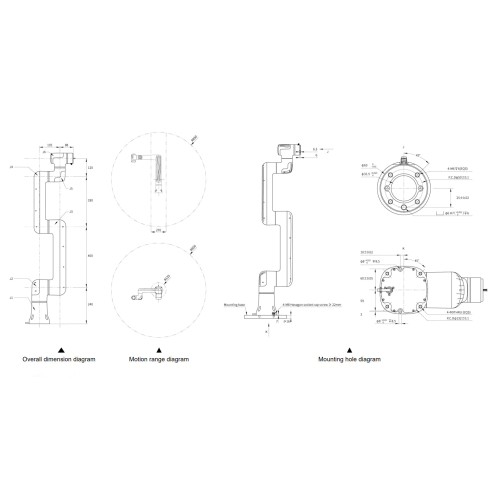

  • Working Radius: 850 mm
  • Maximum Working Speed: 2 m/s
  • Range of Motion:
    • J1: ±360°
    • J2: ±180°
    • J3: ±160°
    • J4: ±360°
    • J5: ±360°
    • J6: ±360°
  • Maximum Joint Speed:
    • J1 to J6: 100°/s
  • End I/O:
    • DI (Digital Inputs): 2
    • DO (Digital Outputs): 2
  • RS485 Support
  • Repeated Positioning Accuracy: ±0.05 mm
  • IP Rating: IP54
  • Noise: 70 dB (A)
  • Temperature Range: 0~50 ℃
  • Power Consumption:
    • Typical: 230 W
    • Maximum: 770 W
  • Installation Mode: Any Angle
  • Cable Length (Robot Body to Electric Cabinet): 3 m
  • Material: Aluminum Alloy, Acrylonitrile Butadiene Styrene Plastic


Controller:

  • Size: 200x120x55 mm
  • Weight: 1.3 kg
  • Input Power: 30~60V DC
  • I/O Power: 24V, Max 2A, Max 0.5A for each channel
  • I/O Interface:
    • Digital Inputs (DI): 8 inputs (NPN or PNP)
    • Digital Outputs (DO): 8 outputs (NPN or PNP)
    • Analog Inputs (AI): 2 inputs, voltage mode, 0~10V
    • Analog Outputs (AO): 2 outputs, voltage mode, 0~10V
  • Communication Interface:
    • Network Interface: 2 (TCP/IP and Modbus TCP communication)
    • USB: 2 (for connecting USB wireless module)
    • 485 Interface: 1 (for RS485 and Modbus RTU communication)
  • Environment:
    • Temperature: 0~50 ℃
    • Humidity: ≤95%, non-condensation
  • Remote Power On/Off: Support
  • IP Rating: IP20
  • Cooling Mode: Passive Heat Loss
  • Teaching Mode: PC, APP (Android, iOS)

Set includes:

  • Nova 5 Robot
  • Emergency Stop Button
  • Tool I/O Extension Cable (2m)
  • CCBOX
  • Power Adapter
  • Controller
  • Quick Start
  • Wireless Connector x1
  • I/O Terminal x2
  • Controller Fixed Plate x4
  • Robot Fixing Screw x4
  • Controller Fixing Screw x4
