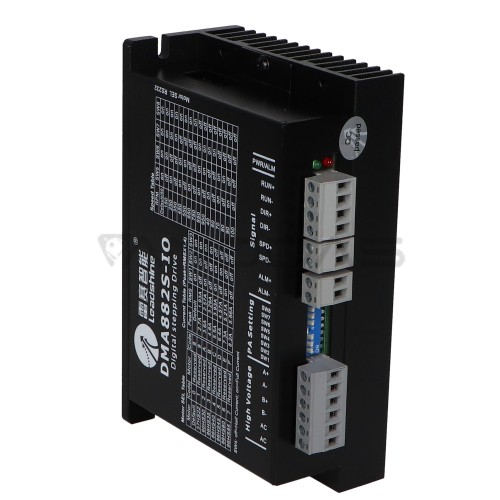

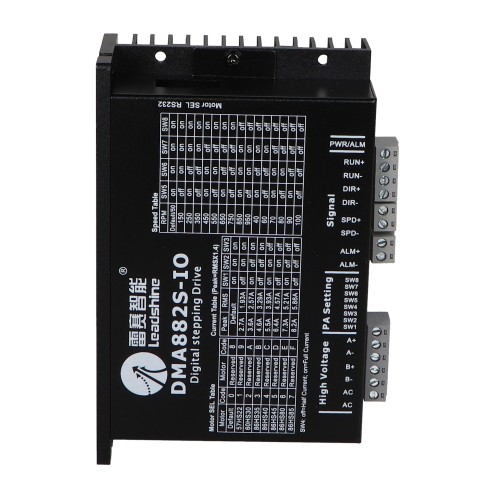

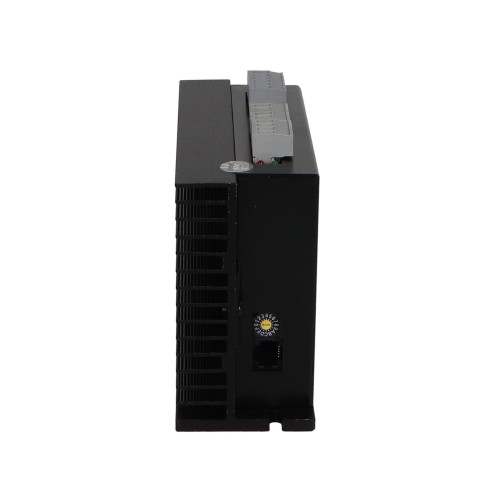

DMA882S-IO Leadshine stepper motor driver

Brand: Leadshine Technology
Product Code: MX-IW-DMA882S-IO
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
151.40€
Ex Tax: 125.12€

Qty

- Extremely low noise level during stepper motor operation

- Output current set by switches SW1, SW2 and SW3

- Motor speed set by switches SW5, SW6, SW7 and SW8

- Internal frequency generator - speed regulation possible without an external, additional control system

- Supply voltage 30-110 VDC or 18-80VAC

- Error output

- Automatic reduction of standstill current

- Autoconfiguration


Phase current PEAK [A] min.: 2.7
Phase current PEAK [A] max.: 8.2
Minimum step division: Not applicable
Step division max.: Not applicable
Input opto-isolation: Yes
Current regulation: Smooth
Configurable via PC: Yes
Max. frequency input signals [kHz]: Not applicable
Suggested for engines [Nm]: 12
Communication protocol:-
Supply voltage min-type-max: 36-50-110 VDC
