DIY Magnetic Connector - Right Angle Five Contact Pins - Adafruit 5359

Brand: Adafruit
Product Code: AN-21439
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
13.40€
Ex Tax: 11.07€

Qty

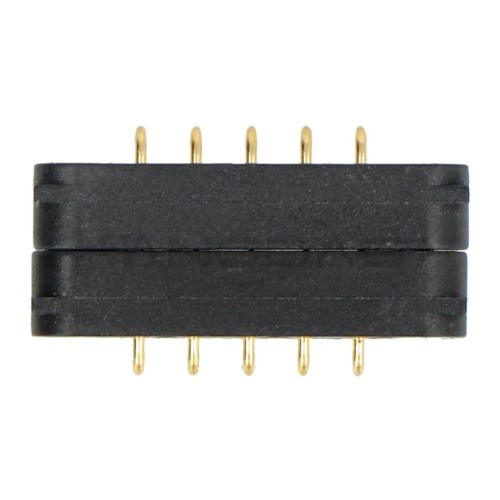

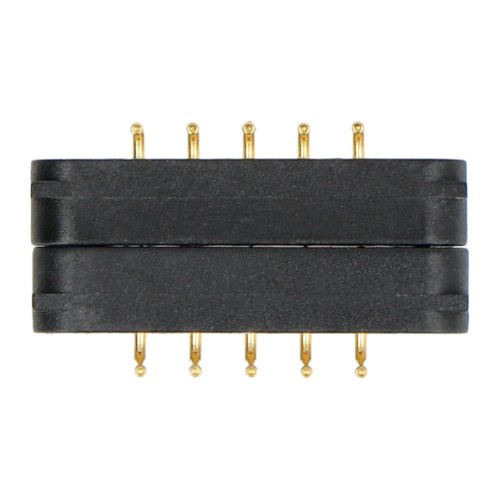

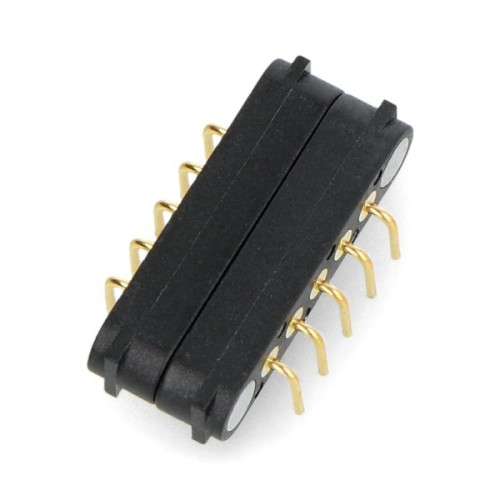

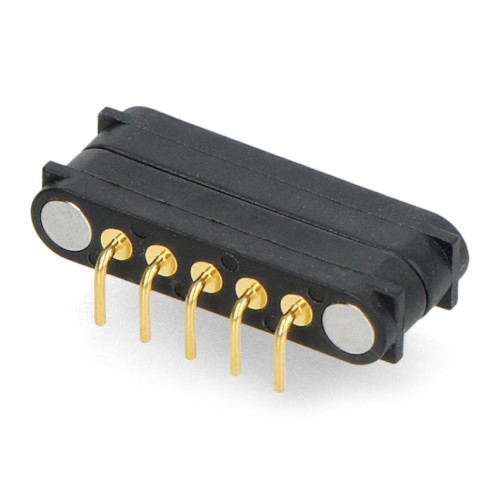

A set of two magnetic connectors for easy and quick connection of two modules. The connectors were made by Adafruit in the manner of MagSafe. The kit includes a connector with 5-pin pogo pins and a connector with 5-pin female pads. The terminals of the connectors are placed at an angle of 90°. The raster of the pins is 2.54 mm, so they can be soldered to the most popular PCB prototype boards. A similar solution can be found in MacBooks and the littleBits set.

Specification:
  • Type of connectors: magnetic, pogo
  • The number of pins: 5
  • Pitch: 2.54 mm
  • Type: angular
  • Voltage: 36 V
  • Max. current: 2 A
  • Working and storage temperature: -30 °C to 65 °C
  • Dimensions: 20.08 x 4.2 x 5.4 mm
Set includes:
  • 1x male pogo magnetic connector, 5-pin, angled
  • 1x female magnetic connector, 5-pin, angled
