Distance sensor carrier with voltage regulator VL53L1X, 400cm, Pololu 3415

Brand: Pololu
Product Code: AN-11842
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
30.00€
Ex Tax: 24.79€

Qty

Digital sensor, connecting the proximity measurement via the method of time-of-flight, and the ability to measure the intensity of ambient light. The working range is up to 400 cm with a resolution of 1 mm. It communicates via the I2C bus (TWi), it is powered with a voltage from 2.6 to 5.5 V.

Specification:

  • Supply voltage: 2.6 V to 5.5 V
  • Current consumption: 15 mA
  • Measuring range: from 4 to 400 cm
  • Resolution: 1 mm
  • Interface: I2C (TWI)

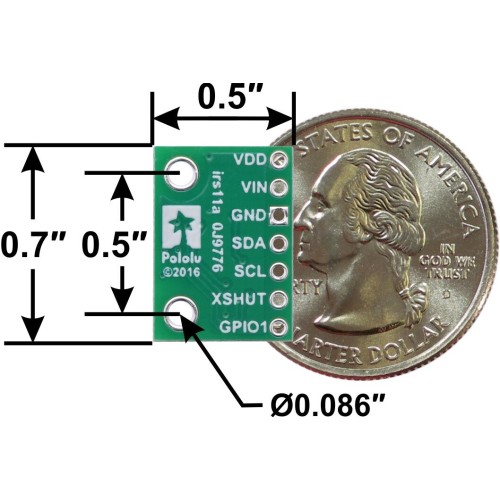

  • Board sizes: 13 x 18 x 2 mm
  • Weight: 0.5 g

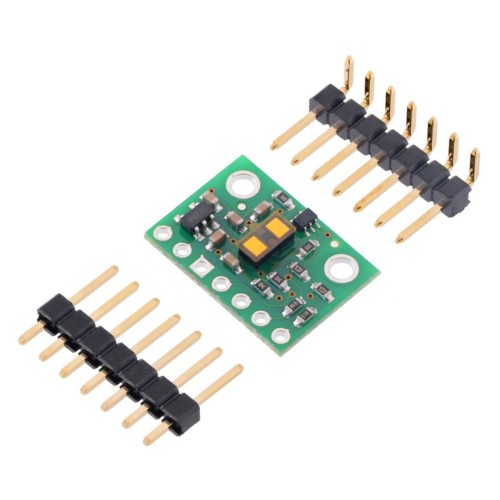

  • The set also includes strap goldpin
