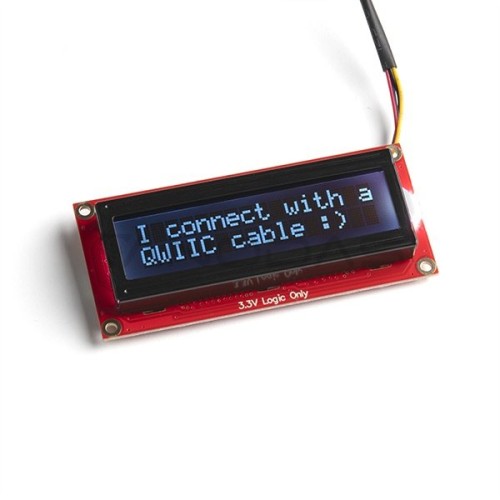

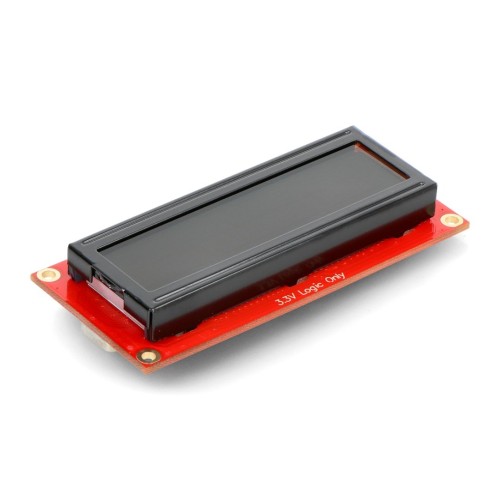

Display Qwiic I2C - 16x2 SerLCD I2C - text RGB- SparkFun LCD-16397

• Equipped with a Qwiic connector, which significantly facilitates the process of creating electronic designs, without the need to solder individual elements

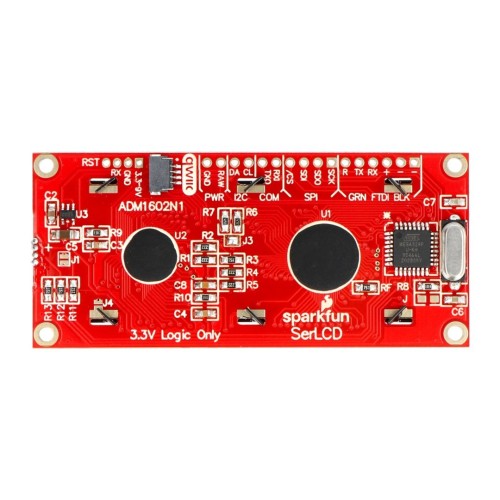

• The built-in AVR ATmega328P controller (with Arduino compatible bootloader) is placed on the back of the screen module board. Supports all LCD controls
• The AVR microcontroller uses a crystal with a frequency of 11.0592 MHz, which increases the accuracy of communication
• Emergency reset to factory settings (RX jumper to GND at startup)
• Input buffer holding up to 80 characters
• Backlight Pulse Width Modulation allows direct control of backlight brightness and power consumption
• The modulation of the width of the contrast pulses allows for the programmatic definition of the amount of contrast
• User-defined splash screen
• Open source firmware and Arduino compatible bootloader enable updates via the Arduino IDE

• Developer: SparkFun
• Supply voltage: from 3.3 V to 9 V (3.3 V only through the Qwiic connector and pin +)
• I/O logic voltage: 3.3 V
• Communication supported: UART, I2C, SPI
• Programmatically variable I2C address: 0x72 (default)
• RGB characters are displayed on a black background
• Dimensions: 80.29 x 35.90 x 14.09 mm
