Display e-paper 2.13'' 250x122px - Cloud Module - WiFi/Bluetooth - for Arduino - Waveshare 19399

Brand: Waveshare
Product Code: AN-20113
Availability: Temporarily Out Of Stock

34.60€
Ex Tax: 28.60€

Qty

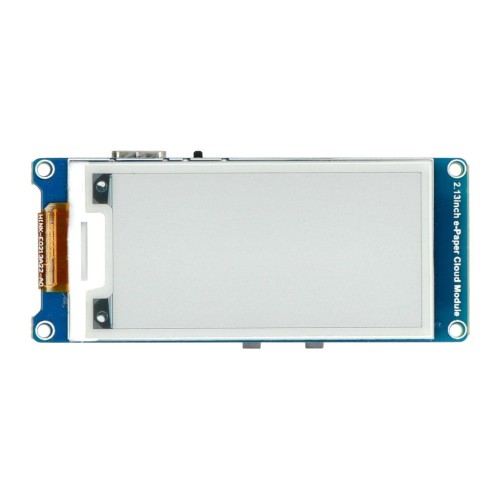

The display is made with e-paper technology manufactured by Waveshare. The diagonal of the screen is equal to 2,13'' and its resolution is 250x122px. The pixel size is 0.194 x 0.194 mm. Powered by a 2000 mAh Li-Ion battery (battery included). It uses 2.4 GHz WiFi wireless communication and Bluetooth 4.2. The display connects to the cloud using an app, allowing you to remotely upload the image you want to display on the screen. In addition, each display is assigned an ID to facilitate central management and tracking.

Main features:

Made with e-paper technology, which is used in the production of e-book readers. It is friendly to the human eye and does not tire the eyes while reading
The display can be centrally tracked and managed with an individual ID. It comes with HTML code so that it can be managed remotely through a website
It has a battery connector and charging circuit, allowing offline operation
Equipped with an ETA6096 charging circuit, with which charging efficiency reaches up to 94%
Compatible with the application available for Android, which allows simple configuration of WiFi communication settings
Supports Floyd-Steinberg's dithering algorithm which provides more color combinations, and better shadow rendering for the original image
Presents the last loaded image even when the power is disconnected
Wide viewing angle exceeding 170°
Passive reflective display

Specification:

Technology: e-paper
Type: Passive reflective display
Resolution: 250x122px
Pixel size: 0.194 x 0.194 mm
Screen diagonal: 2,13''
Viewing angle: > 170°
Display colors: black and white
Wireless communication

WiFi 2.4 GHz
Bluetooth 4.2

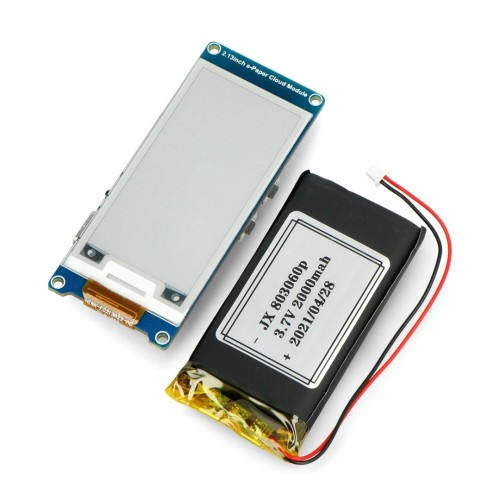

Power supply: 2000 mAh Li-Ion battery (included)
Total refresh time: 2s
Charging circuit: ETA6096
Charging connector: USB type C plug
Supports popular image formats: BMP, JPEG, GIF, PNG, etc.
No backlight, display last content after power off
Display dimensions: 48.55 x 23.71 mm
External dimensions: 71 x 30.20 mm
